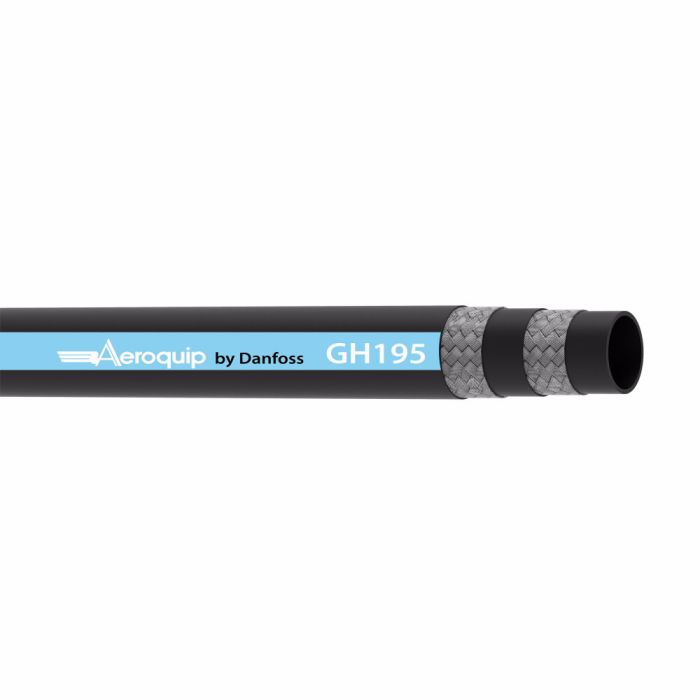

Aeroquip MATCHMATE - Code MM GH195-32

Specifications

Abrasion Resistance 29	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids	Certifications EN853 2SN\|SAE 100R2AT Type S\|ISO 1436-1 Type 2SN	Color Blue	Compliances USCG\|MSHA Approved\|DNV\|BV\|ABS Certified\|EN45545	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -32	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 25	Minimum Bend Radius 25	Minimum Working Temperature -40	Product Width 2	Qualified Hose Fittings TTC, 1SA	Reinforcement Material High-tensile steel cords	Sub Brand Aeroquip	Supplier Part Number GH195-32	Tube Material AQP Inner tube	Product Weight 4.40 lbs

Product Questions & Answers 4

Product Questions & Answers

hose is rated for phosphate ester fluids? got a system running Skydrol and trying to figure out if this'll hold up

Question by: Lance E on Jul 11, 2025, 2:23 PM

Phosphate ester base hydraulic fluids are listed as a compatible application for this hose, so Skydrol service is within its intended use. The AQP inner tube handles that fluid type, and the 2-ply high-tensile steel braid construction keeps it together under pressure. Just make sure your fittings are the TTC or 1SA qualified types to keep the whole assembly rated correctly.

Answer by: Customer Support on Jul 13, 2025, 8:18 AM

What kind of stuff can this hose handle?

Question by: Jean M on Jul 28, 2025, 12:29 PM

It's rated for hydraulics, crude oil, fuel and lubricating oils, gasoline, water, and phosphate ester base hydraulic fluids. So, quite a range of common industrial fluids.

Answer by: Customer Support on Jul 30, 2025, 6:36 AM

got a -32 hose to swap out, is GH195-32 the right dash size and what’s it built like?

Question by: Brent E on Sep 22, 2025, 3:22 PM

For fit, GH195-32 is a dash -32 hose. Construction-wise it’s a 2-ply braided hose with high-tensile steel cord reinforcement, an AQP inner tube, and an elastomer cover in blue.

Answer by: Customer Support on Sep 24, 2025, 9:35 AM

hose is rated for phosphate ester fluids? got some equipment running that stuff and need something that holds up

Question by: Merle B on Feb 22, 2026, 3:28 PM

Phosphate ester base hydraulic fluids are listed among the approved applications for this hose, along with crude, fuel, lubricating oils, gasoline, and water. The AQP inner tube is built to handle that fluid type without breaking down, so you're in good shape there.

Answer by: Customer Support on Feb 23, 2026, 5:03 PM
