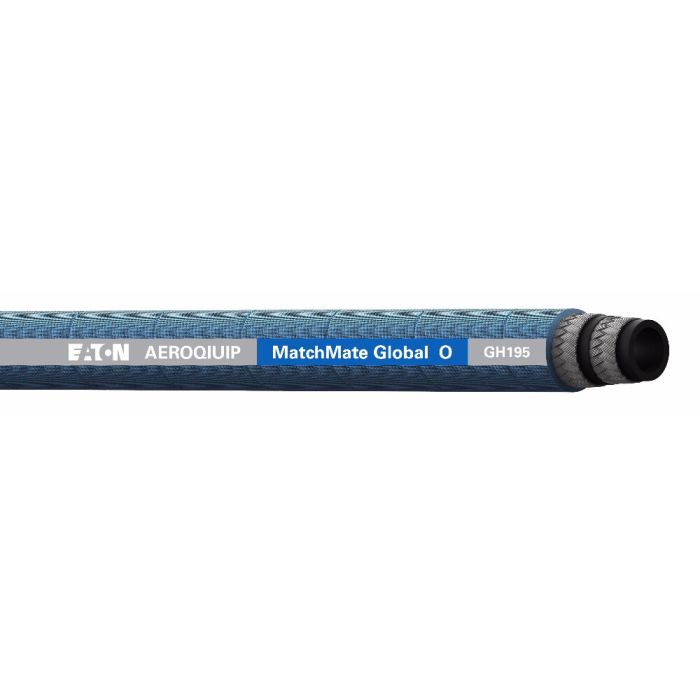

Aeroquip GH195-16 50 Foot Piece

Abrasion Resistance 29	Application Hydraulic system service with petroleum, fireresistant and waterbase fluids, fuel and lubricating systems.	Certifications SAE 100R2AT Type S\|ISO 1436-1 Type 2SN\|EN853 2SN	Color Blue	Compliances MSHA Approved\|USCG\|DNV	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 12.01	Minimum Bend Radius 12.01	Minimum Working Temperature -40	Product Width 1.52	Reinforcement Material High-tensile steel cords	Supplier Part Number GH195-16-06000	Tube Material Elastomer	Product Weight 48.50 lbs

Product Questions & Answers 1

Product Questions & Answers

What kind of fluids can this hose handle, besides just regular hydraulic oil?

Question by: Dale S on Mar 5, 2026, 12:10 PM

This hose is rated for hydraulic systems using petroleum-based fluids, fire-resistant fluids, and even water-based fluids. It also works for fuel and lubricating systems.

Answer by: Customer Support on Mar 6, 2026, 4:08 PM
