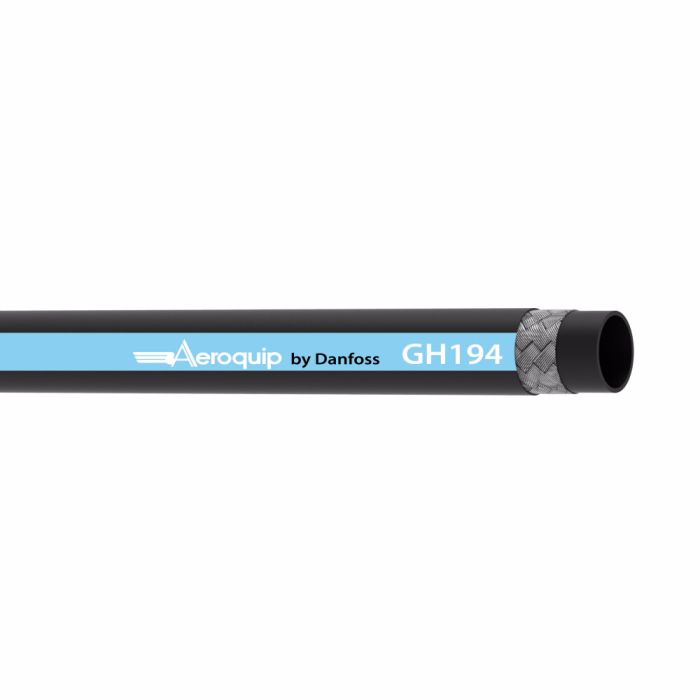

Danfoss / Eaton Aeroquip MATCHMATE Single Wire Braid GH194-4

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number GH194-04	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids.	Certifications ISO 1436-1 Type 1SN\|SAE 100R1 Type S\|EN853 1SN	Color Blue	Compliances DNV\|ABS Certified\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 3.94	Minimum Bend Radius 3.94	Minimum Working Temperature -40	Product Width 0.25	Qualified Hose Fittings 1A, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH194-4RL	Tube Material AQP Inner tube	Product Weight 0.59 lbs

Product Questions & Answers 3

Product Questions & Answers

got a -4 hose run on a little hydraulic setup, how tight can i bend this one without kinkin it

Question by: Roy H on Dec 15, 2025, 3:07 PM

Minimum bend radius on this hose is 3.94 inches, so you want your routing to stay at or above that radius to avoid kinking and premature wear.

Answer by: Customer Support on Dec 17, 2025, 8:20 AM

hose says it's good for phosphate ester hydraulic fluids, we run some pretty aggressive stuff through our lines. that gonna hold up or is this more of a light-duty setup?

Question by: Tommy A on Nov 18, 2025, 9:03 PM

Phosphate ester base fluids are explicitly listed as a compatible fluid type for this hose, alongside hydraulics, crude, fuel and lubricating oils, gasoline, and water. The AQP inner tube material is what makes that compatibility possible, it handles a broader range of fluids than standard rubber tubes. At dash size -4 with a 1-ply wire braid construction, this isn't a light-duty product. It's rated for 400,000 impulse cycles and meets ISO 1436-1 Type 1SN, SAE 100R1 Type S, and EN853 1SN standards, so it's built to take real working conditions seriously.

Answer by: Customer Support on Nov 20, 2025, 8:12 AM

Reckon this hose will hold up okay for running hydraulic fluid on my tractor? Gets pretty hot out here in the summer.

Question by: Steve C on Dec 8, 2025, 3:21 PM

Designed to handle hydraulics, fuel, and lubricating oils, this hose is also rated for a minimum working temperature of -40F, so the summer heat shouldn't be a problem.

Answer by: Customer Support on Dec 10, 2025, 12:44 PM
