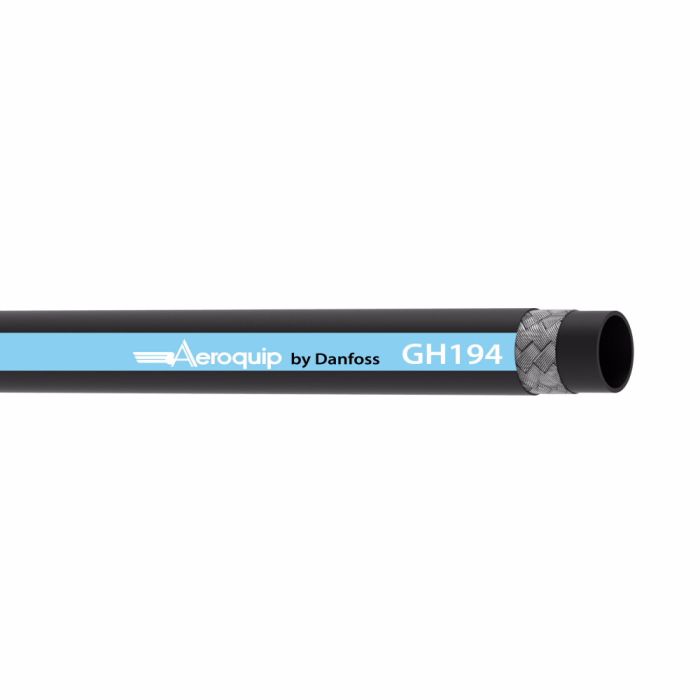

Aeroquip MATCHMATE - CODE GH194-20

Specifications

Abrasion Resistance 29	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids	Certifications SAE 100R1 Type S\|ISO 1436-1 Type 1SN\|EN853 1SN	Color Blue	Compliances DNV\|MSHA Approved\|ABS Certified	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 16.54	Minimum Bend Radius 16.54	Minimum Working Temperature -40	Product Width 1.25	Qualified Hose Fittings TTC, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH194-20	Tube Material AQP Inner tube	Product Weight 1.82 lbs

Product Questions & Answers 3

Product Questions & Answers

got a GH194-20 hose on a machine here, is this the same Aeroquip MatchMate hose or am i mixing part numbers

Question by: Larry M on Oct 15, 2025, 8:07 AM

Match the supplier part number to confirm it. GH194-20 is the Aeroquip GH194 Series 1 ply wire braid rubber hydraulic hose in dash size -20, with an AQP inner tube and a blue elastomer cover.

Answer by: Customer Support on Oct 17, 2025, 6:09 AM

what all fluids is this hose rated for? got equipment running both hydraulic fluid and some gasoline lines and tryin to figure out if one hose covers both

Question by: Travis M on Jan 15, 2026, 6:55 AM

Covers a pretty solid range. The GH194-20 is rated for hydraulic fluids, crude, fuel and lubricating oils, gasoline, water, and phosphate ester base hydraulic fluids. So yes, one hose type handles both of those applications you mentioned.

Answer by: Customer Support on Jan 16, 2026, 8:39 AM

Reckon this hose can handle gasoline without fallin' apart?

Question by: Kent H on Jan 4, 2026, 8:24 PM

Yes sir, this hose is suitable for gasoline, as well as hydraulics, crude, fuel and lubricating oils, water and phosphate ester base hydraulic fluids.

Answer by: Customer Support on Jan 6, 2026, 8:53 AM
