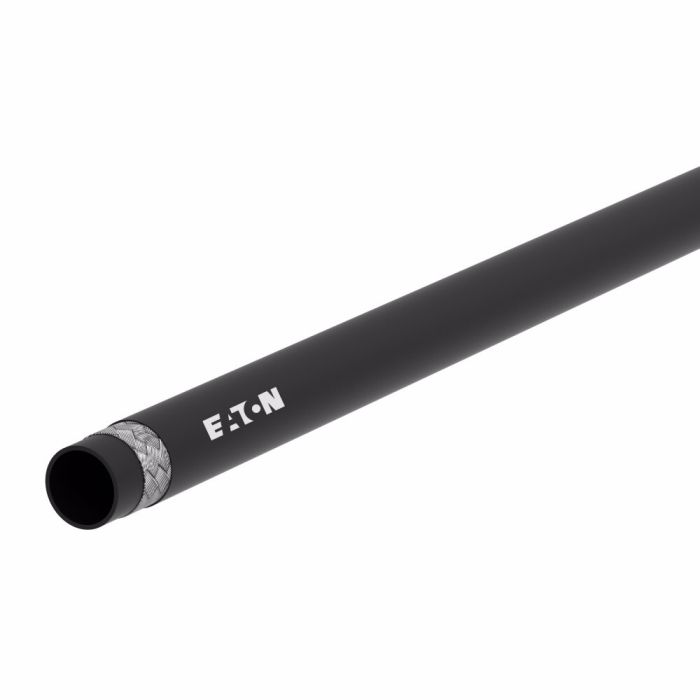

Aeroquip MATCHMATE - CODE GH194-10

Specifications

Abrasion Resistance 28	Application Low temprature flexing and hydraulic service with petroleum and water based fluids	Certifications EN853 1SN\|SAE 100R1 Type S\|ISO 1436-1 Type 1SN	Color Black	Compliances ABS Certified\|DNV\|MSHA Approved	Conductivity 13552	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -57	Product Width 0.62	Qualified Hose Fittings TTC, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH194-10RL	Tube Material Synthetic Rubber	Product Weight 0.90 lbs

Product Questions & Answers 3

Product Questions & Answers

got a machine that sees some cold mornings. is this hose actually meant to flex in low temps without getting stiff?

Question by: Brent C on Jun 29, 2025, 4:16 PM

For cold-weather flexing, this hose is built with a synthetic rubber tube and cover and is called out for low-temperature flexing and hydraulic service. The minimum working temperature listed is -57, and it also has a 4 inch minimum bend radius to help it route without kinking when things get chilly.

Answer by: Customer Support on Jun 30, 2025, 4:21 PM

What kinda fluids can this hose handle?

Question by: Clint B on Dec 26, 2025, 6:37 PM

It's designed for hydraulic service with both petroleum and water-based fluids.

Answer by: Customer Support on Dec 28, 2025, 6:16 AM

What's the lowest temp this hose can handle before it starts getting too stiff to work with?

Question by: Merle M on May 1, 2025, 10:51 AM

Rated down to -57 degrees, so cold mornings and winter outdoor installs aren't going to be a problem. The whole design is built around low-temperature flexing, which means it stays pliable in conditions that would make a lesser hose brittle and hard to route.

Answer by: Customer Support on May 3, 2025, 7:53 AM
