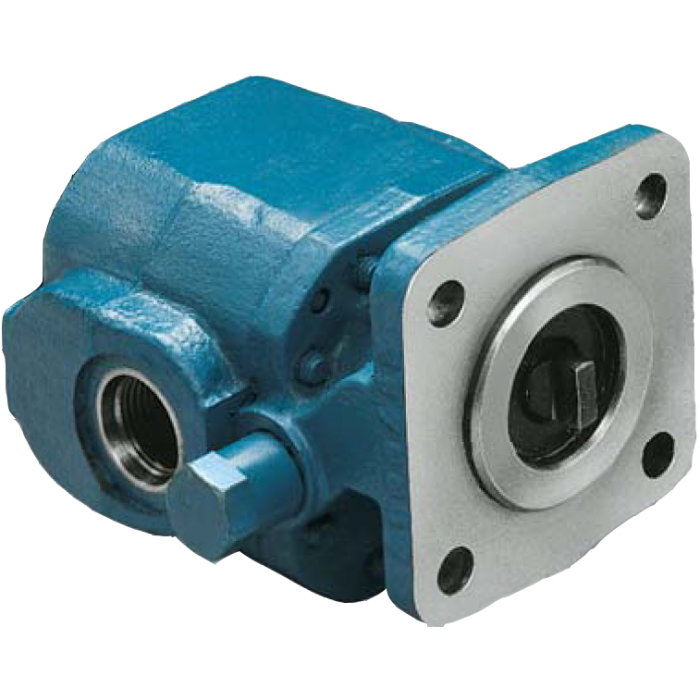

GC Series Gear Pump, 0.13 cu in/rev, 4-bolt 1.78 in. pilot Mounting Flange, 0.17 1in. Tang w/Short Coupling Shaft, SAE-6 Side Ports, Bi-Directional with check valves Rotation

Displacement 0.13	Displacement 0.129	Brand Concentric Rockford Inc	Brand Concentric Rockford	Pack Size 1.00	UOM EA	Features Single Lip Buna-N Pressure Seal	Mount 4-bolt 1.78 in. pilot	Mount 4-bolt 1.78 in. pilot	Ports SAE-6 Side	Ports SAE-6 Side	Pressure Rating 3000	Rated Flow 1	Rated Flow 1	Rotation Bi-Directional with check valves	Shaft 0.17 1in. Tang w/Short Coupling	Shaft 0.17 1in. Tang w/Short Coupling	Speed Rating 4000 RPM	Speed Rating 4000 RPM	Supplier Part Number 1300086	Alternate Part Numbers Alternate Part Number C1LW72	Product Weight 4.66 lbs

Product Questions & Answers

got a setup that needs SAE-6 side ports. is that what this pump has, or am i gonna be hunting for adapters?

Question by: Travis H on Oct 17, 2025, 1:49 PM

Porting on this one is SAE-6 side ports, so it matches up to SAE-6 connections without needing to change the pump body to a different port style.

Answer by: Customer Support on Oct 19, 2025, 9:27 AM

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating
1300086	0.129	1	4-bolt 1.78 in. pilot	0.17 1in. Tang w/Short Coupling	SAE-6 Side	Bi-Directional with check valves	Single Lip Buna-N Pressure Seal	4000 RPM	3000
1300094	0.129	1	4-bolt 1.78 in. pilot	0.50 in. dia. X 1.50 in. extension	SAE-6 Side	Bi-Directional with check valves	Viton High-Pressure Seal w/Outboard Ball Bearing	4000 RPM	3000
1300096	0.258	2	4-bolt 1.78 in. pilot	0.50 in. dia. X 1.50 in. extension	SAE-8 Side	Bi-Directional with check valves	Viton High-Pressure Seal w/Outboard Ball Bearing	4000 RPM	2300
1300098	0.388	3	4-bolt 1.78 in. pilot	0.50 in. dia. X 1.50 in. extension	SAE-10 Side	Bi-Directional with check valves	Viton High-Pressure Seal w/Outboard Ball Bearing	4000 RPM	1600
