Gauge Cplg Fbspp-Fem Soft Seal

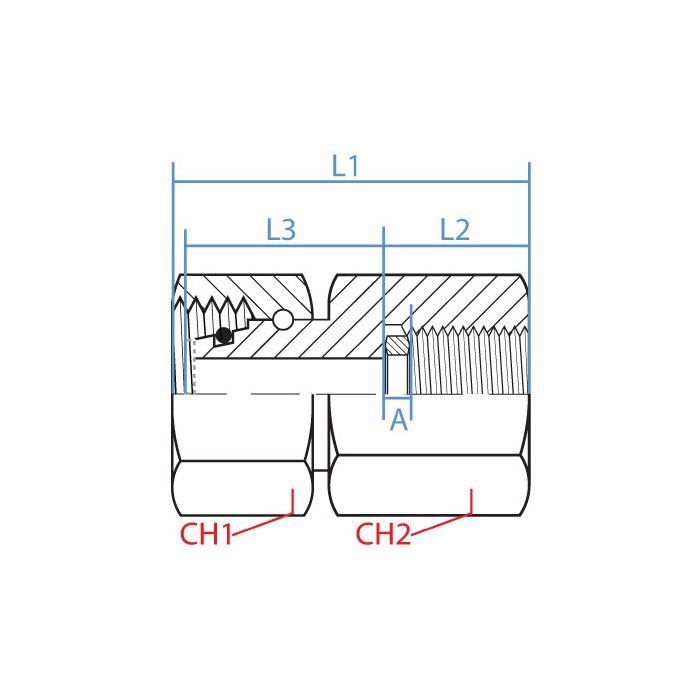

A Misc 4.5mm	CH1 Width 17mm	CH2 Width 19mm	L1 Length 40.5mm	L2 Length 14mm	L3 Length 24.5mm	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender F	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5309GCL-06-04	Product Weight 0.14 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a gauge up, will this couple my M12 x 1.5 DIN tube port over to a G 1/4 - 19 BSPP gauge?

Question by: Wes H on Nov 22, 2025, 2:09 PM

For connecting a gauge with a G 1/4 - 19 BSPP female thread to an M12 x 1.5 DIN tube connection, this coupling is set up exactly that way. Side 1 is female M12 x 1.5 DIN tube, and side 2 is female BSPP G 1/4 - 19 with a soft seal.

Answer by: Customer Support on Nov 23, 2025, 5:47 PM
