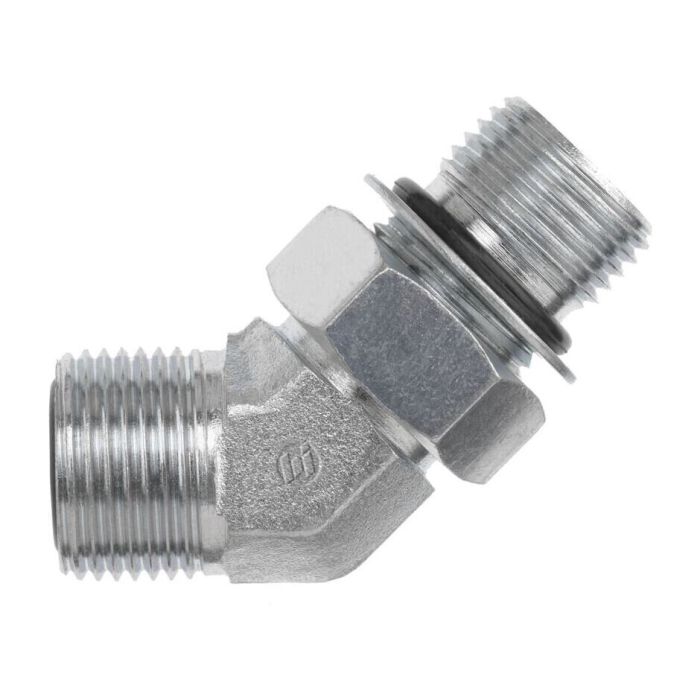

16MFS-16MAORB 45 ELB FS6802-16-16-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6802-16-16-NWO-FG	Product Weight 1.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a 1-inch tube line on a hydraulic system and need to make a 45-degree turn, this the right fitting for that?

Question by: Dwayne G on Dec 22, 2025, 1:21 PM

For a 1-inch O.D. tube application needing a 45-degree directional change, yeah, this one fits the bill. The Brennan FS6802-16-16-NWO-FG is built specifically around 1-inch tube O.D. on the female face seal side, and it transitions to a 1-5/16-12 ORB male thread on the other end. The forged construction holds up well in demanding hydraulic environments, and the compact profile with an M length of 1.180 inches and N length of 2.060 inches keeps things tight in cramped hydraulic connections runs.

Answer by: Customer Support on Dec 23, 2025, 4:10 PM

So, this is a 45-degree elbow, right? Just making sure I'm seeing that correct.

Question by: Ray F on Nov 15, 2025, 10:53 AM

That's right. This connector is a 45-degree elbow forged for robust performance.

Answer by: Customer Support on Nov 17, 2025, 6:58 AM

got a 1 inch tube setup. is this elbow the right size or am i gonna be fighting it

Question by: Marvin T on Feb 8, 2026, 3:33 PM

The key callout is the 1 inch Tube O.D. on this 45 degree forged elbow. The listed A Drill and B Drill are both 0.811 inches, so the internal drill sizes match on both ends, and it is built around that 1 inch tube outside diameter.

Answer by: Customer Support on Feb 10, 2026, 12:29 PM
