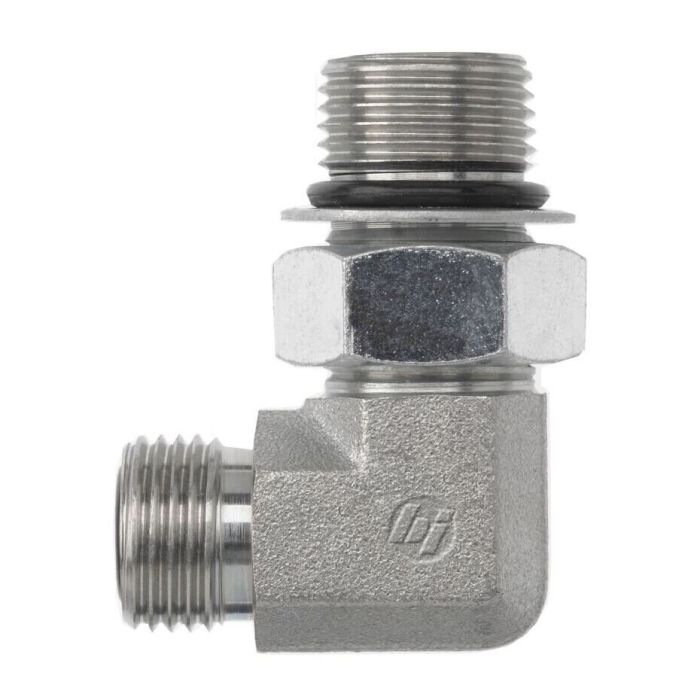

12MFS-16MORB 90 ELBOW FS6801-12-16-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6801-12-16-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this elbow fitting something I could use for a hydraulic setup on a piece of machinery, or is it more for something else?

Question by: Roger C on Sep 13, 2025, 7:26 PM

This 90-degree elbow adapter is a versatile choice, particularly well-suited for hydraulic systems that require connections in tight spaces, thanks to its optimized length of 1.62 inches.

Answer by: Customer Support on Sep 14, 2025, 8:41 PM

got a tight spot on a skid. how long is this 90 elbow end to end?

Question by: Curt G on Oct 20, 2025, 8:16 PM

Overall length on this forged 90 degree elbow is 1.62 inches, and the N length is 2.35 inches.

Answer by: Customer Support on Oct 22, 2025, 7:33 PM

Got a 3/4 inch tube line running into a tight corner on a hydraulic manifold. This the right elbow to make that turn without a bunch of extra fittings?

Question by: Denise P on Nov 16, 2025, 9:24 AM

For a 3/4 inch OD tube line, yeah, this one lines up right. The elbow carries a 3/4 inch tube OD rating and makes a clean 90 degree turn in a pretty compact footprint. Overall length runs 1.62 inches on the M dimension and 2.35 inches on the N length, so it tucks in reasonably well where space is at a premium. Side A uses a 1-3/16-12 thread and side B steps up to a 1-5/16-12, so just make sure both ports on your manifold match those thread specs before you order.

Answer by: Customer Support on Nov 17, 2025, 6:26 PM
