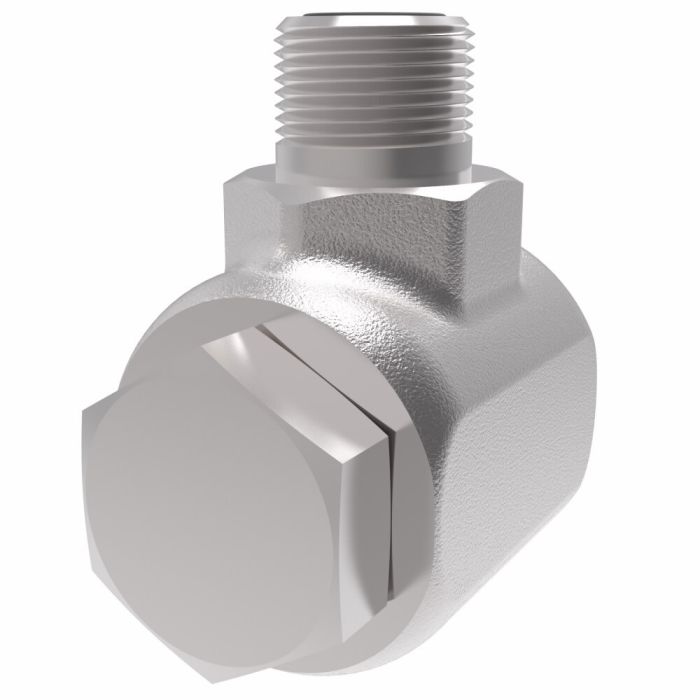

DANFOSS / EATON SWIVEL JOINT 90 DEG MJIC

Ask A Question
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.38
End Size 2
0.38
End Type 1
SAE 37
End Type 2
ORB
Hex Size 2
0.94
ICC
Swivel Joints
Item Type
Swivel Joint Complete
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Product Material
Steel
Product Width
1.26
Sub Brand
None
Supplier Part Number
FS65009-0606-01
Swivel Size
0.38
Product Weight
1.00 lbs
Product Questions & Answers 3

Product Questions & Answers

trying to hook a 3/8 JIC hose up to a 3/8 ORB port but need to turn the corner, is this the right swivel?
Question by: Shawn J on Feb 17, 2026, 10:16 AM
For a 90 degree turn, it connects a 3/8 in male JIC (SAE 37) end to a 3/8 in male ORB end, and the joint swivels so you can rotate it during assembly to help keep the hose from getting twisted.
Answer by: Customer Support on Feb 18, 2026, 8:02 PM
Will this swivel joint hold up okay in a colder climate?
Question by: Shane E on Apr 6, 2026, 11:30 AM
With a minimum working temperature of -40°F, this swivel joint is designed for reliable service even in cold-environment applications.
Answer by: Customer Support on Apr 7, 2026, 3:20 PM
got a hose running at a 90 on a mobile hydraulic setup and the current fitting keeps putting stress on the line during operation, would this swivel joint help with that?
Question by: Dustin H on Mar 28, 2026, 1:50 PM
Swivel joints in this series are built to rotate at the joint itself, which takes the torsional load off the hose and line during both assembly and normal service. For a 90-degree routing change on mobile equipment, that rotation is exactly what keeps the line from fighting itself over time. The 3/8 male JIC end and 3/8 male ORB port cover a pretty common pairing on mobile hydraulic circuits, so fitment on that type of setup is well within what this part is made for.
Answer by: Customer Support on Mar 30, 2026, 10:44 AM
