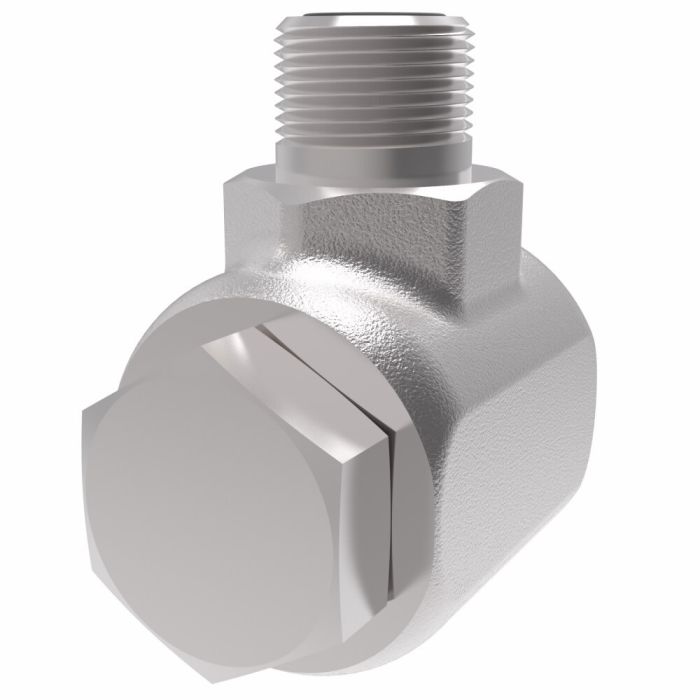

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-1/16-12 Male JIC 37 deg Flare Casing Thread To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Sleeve Thread

A 3.28	B 2.16	C 2.36	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Size 1 0.75	End Size 2 0.75	End Type 1 SAE 37	End Type 2 ORB	Hex Size 2 1.25	Minimum Working Temperature -40	Nominal Size 0.75	Seal Part if Included FS65-01014-212\|FS01021-12	Supplier Part Number FS65009-1212-01	Swivel Size 0.75	Thread 1 1-1/16-12	Thread 2 1-1/16-12	Thread Sealant No	Torque Rating 17 IN-LBS	Torque Rating 17 IN-LBS	Alternate Part Numbers Alternate Part Number C1GF12	Product Weight 1.88 lbs

Product Questions & Answers 2

Product Questions & Answers

got a swivel that needs to go from 1-1/16-12 JIC flare on one side to 1-1/16-12 ORB on the other. is that what this FS65009-1212-01 is?

Question by: Wes P on May 13, 2025, 10:18 AM

Match-up wise, FS65009-1212-01 is a male 1-1/16-12 JIC 37 degree flare on the casing end to a male 1-1/16-12 SAE O-Ring Boss straight thread on the sleeve end, both in a 3/4 nominal size.

Answer by: Customer Support on May 15, 2025, 6:17 AM

What kind of seal does this swivel joint come with, and are there other options if I'm running something other than standard hydraulic oil?

Question by: Floyd S on Aug 6, 2025, 4:51 PM

Buna-N is the standard seal, which works fine for most petroleum-based hydraulic fluids. If your system runs something more aggressive, there are two other options available. The -04 suffix gets you EPR seals, and the -06 suffix is Viton. So depending on what fluid you're pushing through it, you've got some flexibility in how you spec it out.

Answer by: Customer Support on Aug 8, 2025, 6:01 AM

Similar Products

Model Number	Nominal Size	Thread 1	Thread 2	A	B	C	Price	Buy Now
FS65009-1212-01	0.75	1-1/16-12	1-1/16-12	3.28	2.16	2.36
