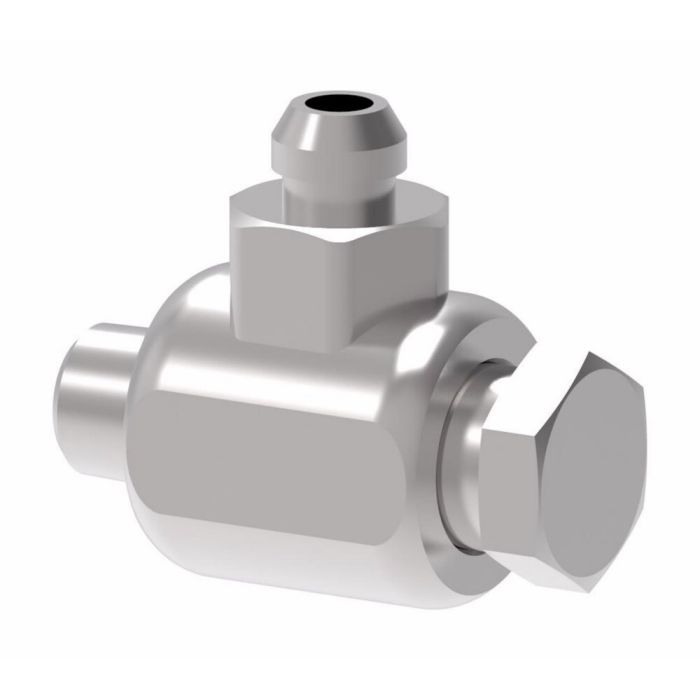

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1/2-14 Female Pipe Casing Thread To 1/2-14 Male Pipe Sleeve Thread

Ask A Question
A
2.88
B
1.54
C
1.88
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.50
End Size 2
0.50
End Type 1
NPTF
End Type 2
NPTF
Hex Size 2
1
Minimum Working Temperature
-40
Nominal Size
0.50
Supplier Part Number
FS65007-0808-01
Swivel Size
0.50
Thread 1
1/2-14
Thread 2
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KL98
Product Weight
1.20 lbs
Product Questions & Answers 2

Product Questions & Answers

what seal material comes standard on this swivel joint, and are there other options if I'm running something other than regular hydraulic oil?
Question by: Hank R on Aug 7, 2025, 11:47 AM
Buna-N is the standard seal material, which covers most petroleum-based hydraulic fluids just fine. If your system runs something that isn't compatible with Buna-N, there are two other seal options available for this series. The EPR version uses the suffix -04, and the Viton version uses suffix -06. Just make sure to specify the right suffix when ordering so you get the correct seal for your fluid type.
Answer by: Customer Support on Aug 9, 2025, 7:14 AM
What kinda stuff can this swivel joint handle pressure-wise? Just wanna make sure it'll hold up.
Question by: Harvey B on Jun 3, 2025, 7:29 PM
It's rated to handle 3500 PSI, which should be suitable for a bunch of industrial applications where you're not pushing things too hard.
Answer by: Customer Support on Jun 5, 2025, 6:39 PM

Similar Products

Model Number Nominal Size Thread 1 Thread 2 A B C Price Buy Now
FS65007-0808-01 0.5 1/2-14 1/2-14 2.88 1.54 1.88
FS65007-1616-01 1 1-11-1/2 1-11-1/2 3.91 2.27 2.62
