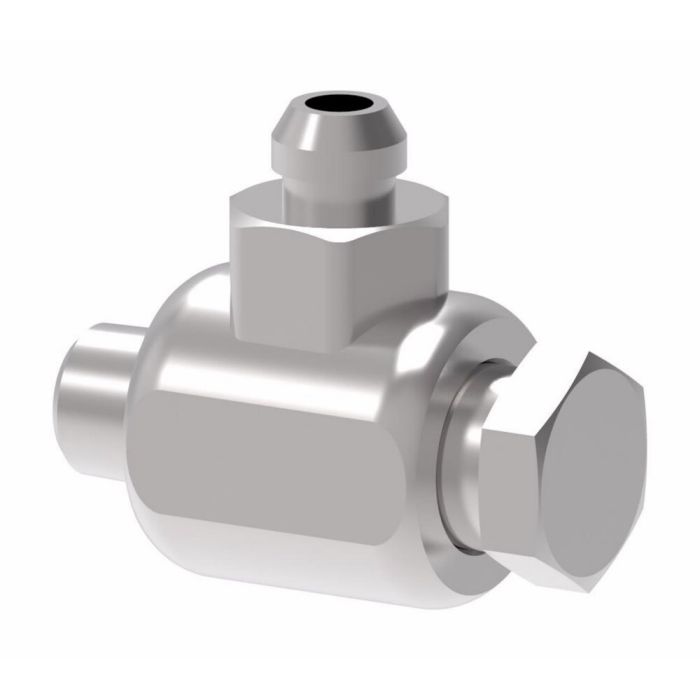

FS65 Series Standard Duty Balanced Pressure Swivel Joint, 1-11-1/2 NPSM Female Pipe Swivel Casing Thread To 1-11-1/2 Male Pipe Sleeve Thread

A 3.91	B 2.27	C 2.40	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 1	End Size 2 1	End Type 1 NPSM	End Type 2 NPTF	Hex Size 2 1.63	Minimum Working Temperature -40	Nominal Size 1	Supplier Part Number FS65000-1616-01	Swivel Size 1	Thread 1 1-11-1/2 NPSM	Thread 2 1-11-1/2	Thread Sealant No	Torque Rating 32 IN-LBS	Torque Rating 32 IN-LBS	Alternate Part Numbers Alternate Part Number C1FK62	Product Weight 2.00 lbs

Product Questions & Answers 2

Product Questions & Answers

what seal options come with this swivel joint, and are any of them better suited for petroleum-based fluids?

Question by: Curt T on Nov 26, 2025, 7:21 PM

Buna-N is the standard seal and handles petroleum-based hydraulic fluids just fine for most shop and field applications. If you're running something more aggressive, EPR is available with the -04 suffix and Viton with the -06 suffix. For straight mineral oil or standard hydraulic fluid, the Buna-N that comes on the -01 version is going to hold up without any issue.

Answer by: Customer Support on Nov 28, 2025, 9:01 AM

got a tight spot on a hose reel. does this swivel actually spin all the way around or is it limited?

Question by: Kurt W on Jun 14, 2025, 10:27 AM

For hose reels and other moving hydraulic connections, it gives you full 360° rotation, so the joint can turn continuously instead of binding up.

Answer by: Customer Support on Jun 15, 2025, 8:02 PM

Similar Products

Model Number	Nominal Size	Thread 1	Thread 2	A	B	C
FS65000-0606-01	0.375	3/8-18 NPSM	3/8-18	2.53	1.48	1.45
FS65000-0808-01	0.5	1/2-14 NPSM	1/2-14	2.88	1.54	1.62
FS65000-1212-01	0.75	3/4-14 NPSM	3/4-14	3.21	1.89	2.14
FS65000-1616-01	1	1-11-1/2 NPSM	1-11-1/2	3.91	2.27	2.4
