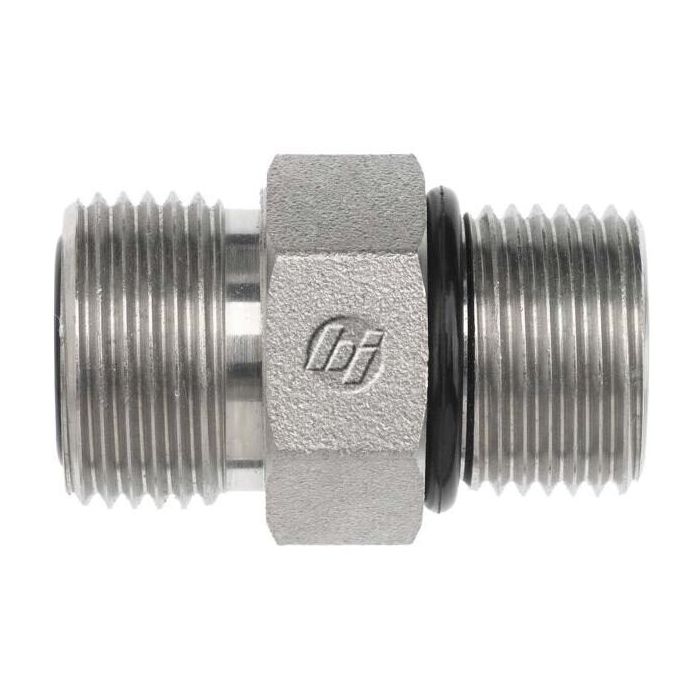

04MFS-08MAORB STRAIGHT

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS6400-04-08-O	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to match up a straight adapter i’ve got here, what are the thread sizes on the A and B ends for this one

Question by: Shane H on Oct 29, 2025, 3:33 PM

For fit-up, the A thread is 9/16-18 and the B thread is 3/4-16.

Answer by: Customer Support on Oct 30, 2025, 6:40 PM

What size is the tube that this adapter fits?

Question by: Dwayne G on Dec 7, 2025, 9:49 AM

This adapter is made for a 1/4 inch outside diameter tube.

Answer by: Customer Support on Dec 8, 2025, 7:23 PM

does the 1/4 inch tube O.D. on this thing mean it'll hook straight up to standard 1/4 inch tubing, or is there more to fittin it right?

Question by: Vince B on Mar 29, 2026, 9:10 PM

For a 1/4 inch O.D. tube connection, this adapter is built to accommodate exactly that size. The A thread is 9/16-18 and the B thread is 3/4-16, so the tube side and the port side each have their own thread spec. As long as your tubing matches the 1/4 inch O.D. and your port is a 3/4-16 ORB, the fit should be straightforward with no extra adapters needed in between.

Answer by: Customer Support on Mar 31, 2026, 6:34 PM
