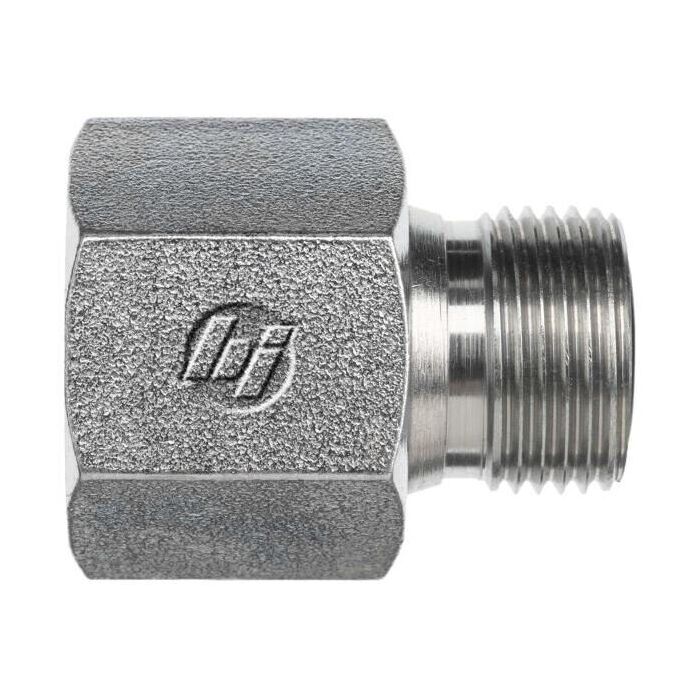

12FFSS-06MFS STRAIGHT FS2406-12-06

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2406-12-06	Product Weight 0.34 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a line dropping from 3/4 down to 3/8 tube OD on a manifold block. This a straight reducer fitting or is there some kind of offset to it?

Question by: Shawn G on Aug 1, 2025, 8:30 AM

Straight through, no offset. The larger end threads in at 1-3/16-12 for the 3/4" tube OD side, and the smaller end runs 11/16-16 for the 3/8" tube OD connection. Both ends use face seal, so you get a clean, leak-resistant joint on each side. At just over an inch long with a 1.375" hex, it fits pretty tight in compact assemblies without a lot of extra clearance needed.

Answer by: Customer Support on Aug 2, 2025, 8:24 PM

trying to swap a line down from 3/4 tube to 3/8 tube, is that what this straight fitting is for?

Question by: Warren P on Apr 13, 2025, 6:11 PM

For stepping down between line sizes, this one goes from a 3/4 inch tube OD end to a 3/8 inch tube OD end in a straight, face seal style. The larger side uses a 1-3/16-12 thread and the smaller side uses an 11/16-16 thread, so it is meant for a size reduction where those thread sizes match up.

Answer by: Customer Support on Apr 14, 2025, 9:06 PM

Reckon this'll work to hook up a 3/4" line to a 3/8" one?

Question by: Hubert G on Jul 9, 2025, 8:30 AM

This straight face seal fitting is indeed designed to connect a 3/4" OD tube to a 3/8" OD tube. That's exactly what the different thread sizes (1-3/16-12 and 11/16-16) are there for.

Answer by: Customer Support on Jul 10, 2025, 9:28 AM
