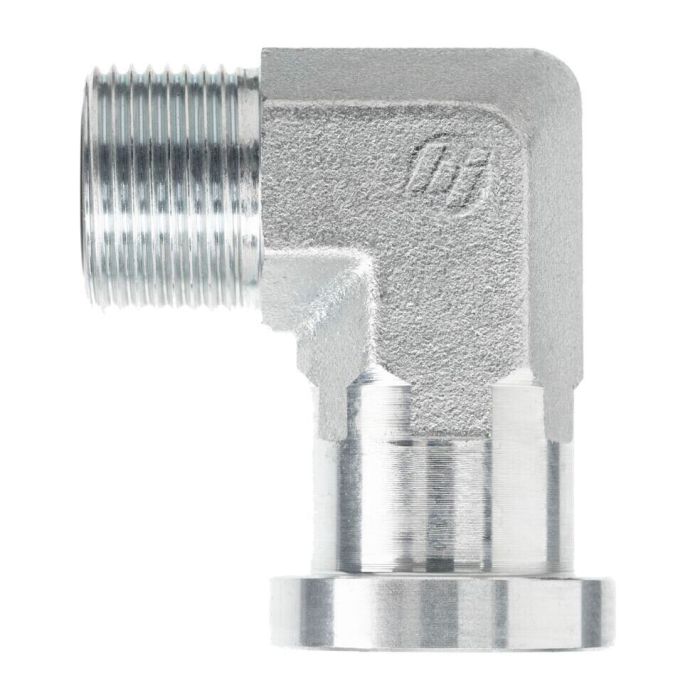

20MFS-20FLANGE 90 DEG ELBOW CODE 62 FORG

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS1804-20-20-FG	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

How much room do I need to give myself for this elbow, dimension-wise?

Question by: Curt K on Apr 29, 2025, 7:55 PM

Looking at the dimensions, you'll need 2.060 inches (L1) in one direction and 2.750 inches (L2) in the other, plus the space for your connections. The across-flats is 1.625 inches, if that helps with tight fits.

Answer by: Customer Support on May 1, 2025, 5:15 PM
