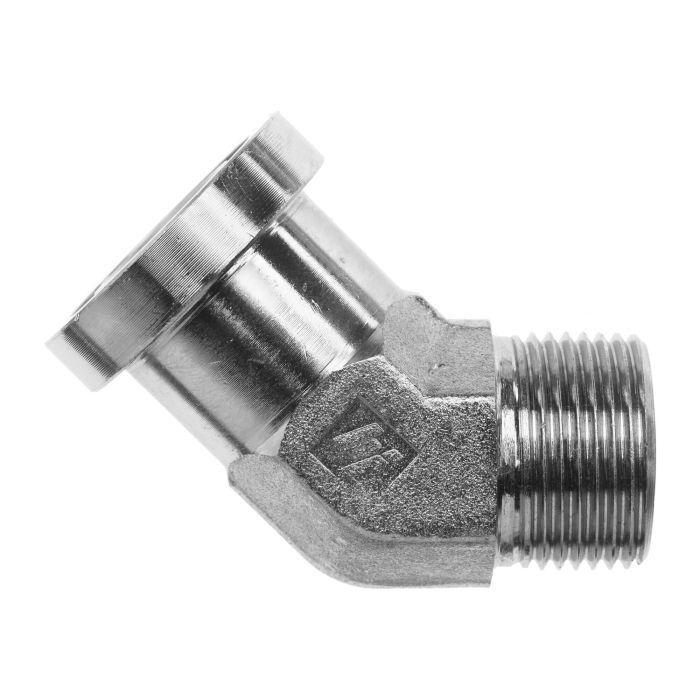

16MFS-16FLANGE 45 ELBOW CODE 62

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS1803-16-16-FG	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

Hey, what size tubing does this elbow fit?

Question by: Todd P on Jun 1, 2025, 8:04 AM

This elbow fitting is made for a 1-inch outside diameter tube, so it should give you a nice, secure fit.

Answer by: Customer Support on Jun 3, 2025, 6:44 AM

what's the tube OD and flange size on this fitting, trying to make sure it'll mate up right with what we already got running

Question by: Melvin O on Jan 30, 2026, 6:29 PM

The tube outside diameter is 1 inch and the flange size is also 1 inch. The thread is 1-7/16-12, and the across flats dimension comes in at 1.312 inches. For length, L1 is 1.470 inches and L2 runs 1.850 inches. Those numbers should give you enough to cross-check against your existing setup before you order.

Answer by: Customer Support on Feb 1, 2026, 8:57 AM

trying to swap out an elbow on a 1 inch tube line. is this one actually for 1 inch tube OD and a 1 inch flange?

Question by: Daryl P on Jul 19, 2025, 4:22 PM

The key callouts on this elbow are a 1 inch tube outside diameter and a 1 inch flange size, along with a 1-7/16-12 thread on the male side. It is a 45 degree elbow in the Brennan FS1803-FG series.
