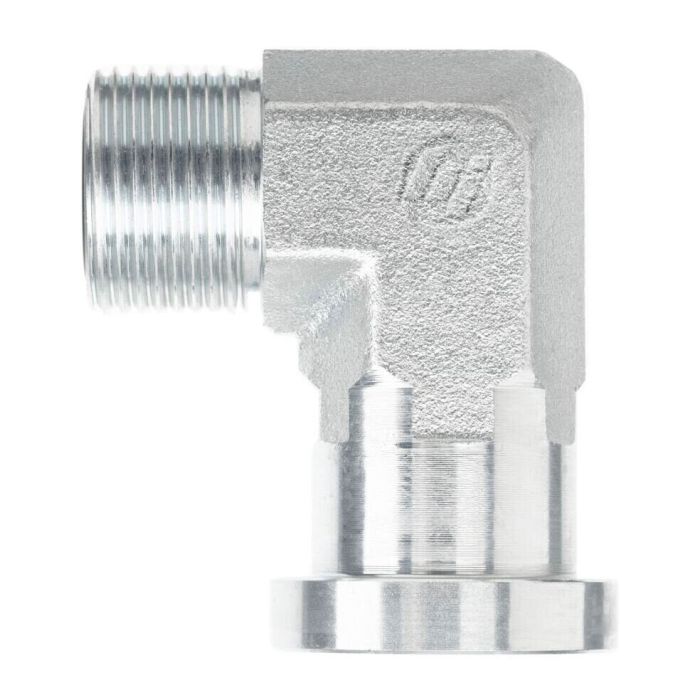

16MFS-16FLANGE 90 ELBOW CODE 61

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS1704-16-16-FG	Product Weight 1.29 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up if it's under constant pressure all day long?

Question by: Phil F on Mar 13, 2026, 1:14 PM

Engineered from premium materials, this elbow adapter offers robust durability, even under demanding conditions.

Answer by: Customer Support on Mar 15, 2026, 10:40 AM

What size flange does this elbow connect to, and is the thread a straight or tapered fit?

Question by: Rod F on Feb 13, 2026, 5:49 PM

The flange side is a 1-inch tube O.D. Code 61 flange connection, and the male thread is 1-7/16-12, which is a straight thread fitting. Code 61 flanges use a clamped split-flange or four-bolt configuration, so there's no taper involved on either end. Pretty straightforward once you've got the right flange head and hardware on hand.

Answer by: Customer Support on Feb 15, 2026, 6:41 AM

got a 1 inch tube line and need to turn it 90 degrees, is this the elbow for that?

Question by: Wayne K on Feb 27, 2026, 6:50 PM

For a 90 degree turn with 1 inch tube O.D. on the tube side, this part matches that size and uses a 1-7/16-12 thread on the other end, so it fits setups calling for those two connection sizes.

Answer by: Customer Support on Mar 1, 2026, 3:45 PM
