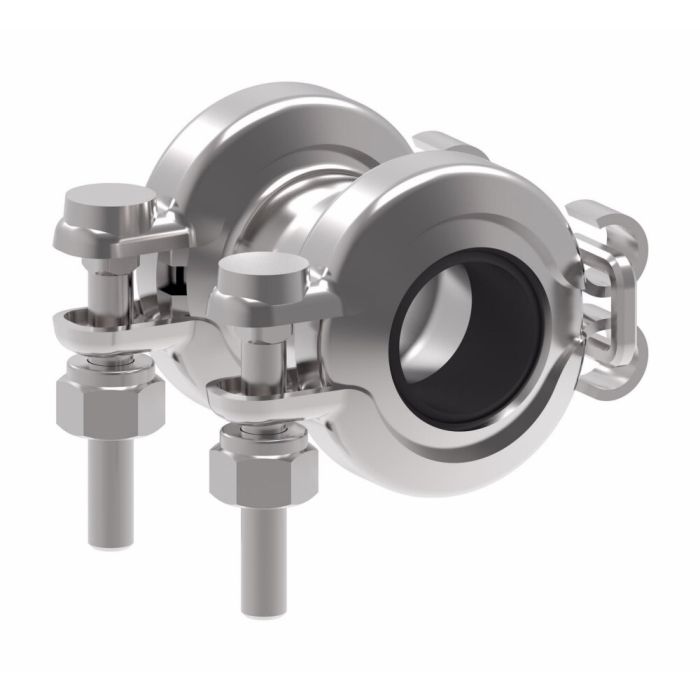

Flexmaster Pipe & Tube Joint, 6.00 Inch Pipe, Straight

Application
General purpose
B
8.86
C
11.24
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
6
End Size 2
6
End Type 1
Compression
End Type 2
Compression
Materials
Plated Steel
Minimum Working Temperature
-30
Pipe O.D.
6.63
Pipe Size
6
Seal Material
Buna-N
Seal Part if Included
NK1000063C600
Supplier Part Number
NH1600C600B0650
Thread Sealant
No
Torque Rating
300 IN-LBS
Torque Rating
300 IN-LBS
Type
STD
Alternate Part Numbers
Alternate Part Number C1KW39
Product Weight
15.07 lbs

Product Questions & Answers

Got a 6-inch line with just a little bit of droop to it where two sections meet. Think this joint can handle that kind of thing or do I need something else?
Question by: Phil C on Oct 6, 2025, 4:48 PM
Four degrees of angular misalignment per end is what this joint is built to handle, so a slight droop or minor offset in a straight run is well within its range. It uses dual compression-style female ends sized for 6-inch pipe with a 6.625-inch OD, so as long as your pipe matches those dimensions, it should fit up without trouble. Just keep in mind the joint itself isn't meant to hold the line in place structurally. You'll still need your hangers, anchors, and guides doing their job to keep the system from moving around.
Answer by: Customer Support on Oct 8, 2025, 6:06 AM

Similar Products

Model Number Pipe Size Pipe O.D. Type Seal Material Materials A B C Price Buy Now
NH1600C125B0325 1.25 1.66 STD Buna-N Plated Steel 2.71 3.85
NH1600C200B0400 2 2.375 STD Buna-N Plated Steel 3.43 4.6
NH1600C250B0650 2.5 2.875 STD Buna-N Plated Steel 4.73 6.23
NH1600C300B0650 3 3.5 STD Buna-N Plated Steel 5.36 6.87
NH1600C350B0650 3.5 4 STD Buna-N Plated Steel 5.86 7.38
NH1600C400B0650 4 4.5 STD Buna-N Plated Steel 6.36 7.89
NH1600C600B0650 6 6.625 STD Buna-N Plated Steel 8.86 11.24
