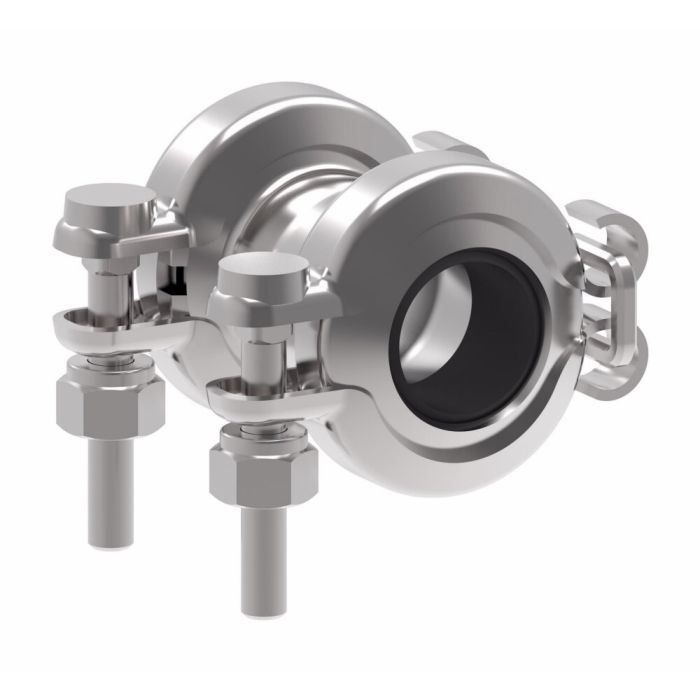

Flexmaster Pipe & Tube Joint, 3.50 Inch Pipe, Straight

Application General purpose	B 5.86	C 7.38	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 3.50	End Size 2 3.50	End Type 1 Compression	End Type 2 Compression	Materials Plated Steel	Minimum Working Temperature -30	Pipe O.D. 4	Pipe Size 3.50	Seal Material Buna-N	Supplier Part Number NH1600C350B0650	Thread Sealant No	Torque Rating 240 IN-LBS	Torque Rating 240 IN-LBS	Type STD	Alternate Part Numbers Alternate Part Number C1JP77	Product Weight 7.26 lbs

Product Questions & Answers 3

Product Questions & Answers

If I need to take this apart later, what's the torque on those bolts?

Question by: Pete R on May 6, 2025, 10:45 AM

The Flexmaster joint needs 240 IN-LBS of torque for proper installation.

Answer by: Customer Support on May 7, 2025, 2:36 PM

trying to swap out an old joint, is this one actually for 3.5 inch pipe and straight through?

Question by: Tammy T on Aug 27, 2025, 9:15 PM

It’s a straight Flexmaster pipe and tube joint with female compression ends sized for 3.50 inch pipe. The listed pipe OD is 4 inches, so it’s meant to clamp and seal on that 3.5 inch pipe size using compression connections.

Answer by: Customer Support on Aug 29, 2025, 8:22 AM

Got a 3.5 inch pipe that's running a little crooked coming out of a pump housing. Will this joint handle that kind of situation or do i need something else?

Question by: Jerry M on Sep 23, 2025, 2:40 PM

Angular misalignment up to 4 degrees per end is within what this joint handles, so minor pipe run deviation coming off a pump housing is exactly the kind of thing it's built for. Keep in mind the joint itself isn't meant to restrain pipe movement along the line. You'll still need hangars, guides, or anchors to hold the system in place. The joint seals the connection, it doesn't lock the pipe from shifting axially.

Answer by: Customer Support on Sep 25, 2025, 2:25 PM

Similar Products

Model Number	Pipe Size	Pipe O.D.	Type	Seal Material	Materials	B	C
NH1600C125B0325	1.25	1.66	STD	Buna-N	Plated Steel	2.71	3.85
NH1600C200B0400	2	2.375	STD	Buna-N	Plated Steel	3.43	4.6
NH1600C250B0650	2.5	2.875	STD	Buna-N	Plated Steel	4.73	6.23
NH1600C300B0650	3	3.5	STD	Buna-N	Plated Steel	5.36	6.87
NH1600C350B0650	3.5	4	STD	Buna-N	Plated Steel	5.86	7.38
NH1600C400B0650	4	4.5	STD	Buna-N	Plated Steel	6.36	7.89
NH1600C600B0650	6	6.625	STD	Buna-N	Plated Steel	8.86	11.24
