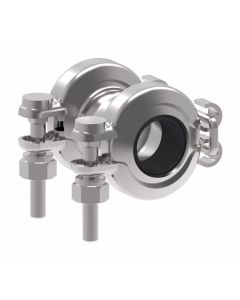

Flexmaster Pipe & Tube Joint, 3.00 Inch Pipe, Straight

Application
General purpose
B
5.36
C
6.87
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
3
End Size 2
3
End Type 1
Compression
End Type 2
Compression
Materials
Plated Steel
Minimum Working Temperature
-30
Pipe O.D.
3.50
Pipe Size
3
Seal Material
Buna-N
Supplier Part Number
NH1600C300B0650
Thread Sealant
No
Torque Rating
180 IN-LBS
Torque Rating
180 IN-LBS
Type
STD
Alternate Part Numbers
Alternate Part Number C1DF72
Product Weight
19.04 lbs

Product Questions & Answers

Wondering if this Flexmaster joint would be good to use on some hydraulic lines I'm piecing together?
Question by: Dwight R on Jul 13, 2025, 11:41 AM
These Flexmaster joints are designed to seal pipe and tube connections, so they should work well for your hydraulic lines. They're not really meant to hold entire hydraulic lines systems together though, so make sure you've got proper supports and restraints in place.
Answer by: Customer Support on Jul 14, 2025, 8:21 PM
these flexmaster joints, are they meant to hold the pipe system together or just seal the connections?
Question by: Wade E on Apr 1, 2026, 6:05 AM
Sealing is the job here, not structural support. The joint keeps the connection tight and handles angular misalignment up to 4 degrees per end, but the hydraulic lines system itself needs to be held in place with hangers, guides, anchors, or other external restraints. The joint won't prevent the pipe from moving along its length on its own, so don't skip those supports.
Answer by: Customer Support on Apr 2, 2026, 1:35 PM

Similar Products

Model Number Pipe Size Pipe O.D. Type Seal Material Materials A B C Price Buy Now
NH1600C125B0325 1.25 1.66 STD Buna-N Plated Steel 2.71 3.85
NH1600C200B0400 2 2.375 STD Buna-N Plated Steel 3.43 4.6
NH1600C250B0650 2.5 2.875 STD Buna-N Plated Steel 4.73 6.23
NH1600C300B0650 3 3.5 STD Buna-N Plated Steel 5.36 6.87
NH1600C350B0650 3.5 4 STD Buna-N Plated Steel 5.86 7.38
NH1600C400B0650 4 4.5 STD Buna-N Plated Steel 6.36 7.89
NH1600C600B0650 6 6.625 STD Buna-N Plated Steel 8.86 11.24
