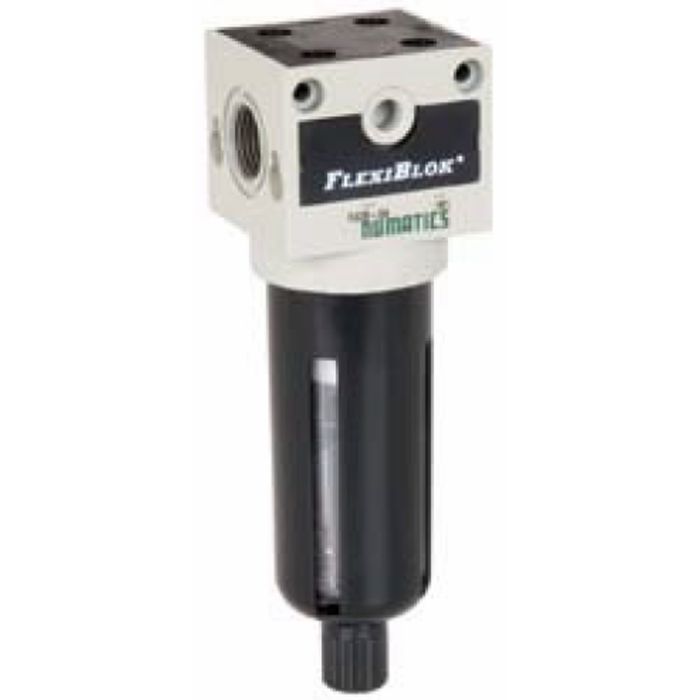

FlexiBlok Series Air Line Filter, 1/4 Inch Ports, 5 micron Element, 32 SCFM Flow Rating, 1.5 oz Bowl Capacity, Poly Manual Drain

Bowl Capacity
1.5 oz
Dimensions
5.94H x 1.68W
Drain Type
Poly Manual
Brand
Numatics - C/O Asco Lp
Brand
Asco Lp Cylinder
Pack Size
1.00
UOM
EA
Element
5 micron
Flow Rating (SCFM)
32
Port Size
1/4
Series
14
Supplier Part Number
F14B-02M
Alternate Part Numbers
Alternate Part Number C1LB67, Alternate Part Number MI-06948360, Alternate Part Number MINO-00609X70039
Product Weight
0.70 lbs

Product Questions & Answers

got a small 1/4 inch air line on a machine, will this filter keep the water and grit out or is it more for big shop air setups?
Question by: Roger R on Aug 20, 2025, 6:56 PM
Built for general compressed air cleanup, it uses a 5 micron sintered element to pull out water, dust, and debris. At its rated 32 SCFM flow, water removal efficiency is listed at greater than 90%, so it is a solid primary filter for a 1/4 inch air line.
Answer by: Customer Support on Aug 22, 2025, 12:44 PM
runs about 32 SCFM through our lines most of the time, will this filter keep up without starving the system?
Question by: Kurt Y on May 28, 2025, 11:34 AM
At 32 SCFM, you're right at the rated flow for this unit, so it'll handle that load without restriction under normal conditions. The 5 micron sintered element is built to pull out water, dust, and debris at that rate, with better than 90% water removal efficiency when running at its rated flow. Just keep in mind the polycarbonate bowl is rated to 150 psi max, so as long as your system pressure stays under that, you're in good shape.
Answer by: Customer Support on May 29, 2025, 6:05 PM

Similar Products

Model Number Series Flow Rating (SCFM) Element Drain Type Bowl Capacity Dimensions Price Buy Now
F14B-02 14 32 5 micron Poly Manual 1.5 oz 5.94H x 1.68W
F14B-02M 14 32 5 micron Poly Manual 1.5 oz 5.94H x 1.68W
F14B-02MQ 14 32 5 micron Metal Manual 1.5 oz 5.94H x 1.68W
F14B-02Q 14 32 5 micron Metal Manual 1.5 oz 5.94H x 1.68W
