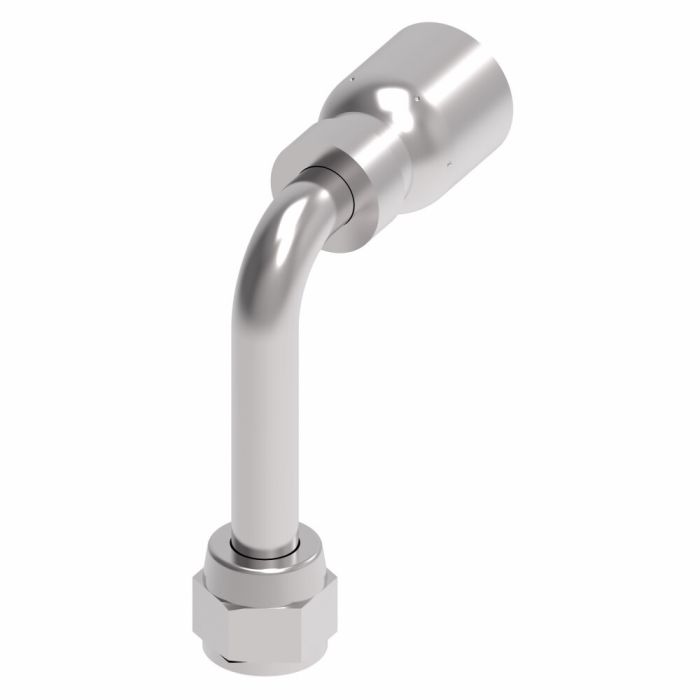

DANFOSS / EATON Ftng (perm), R5

Drop Dimension 2.18	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.56	End Type 1 SAE	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -6	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	Product Material Carbon Steel	Product Width 0.84	Sub Brand Aeroquip	Supplier Part Number FJ3251-0606S	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got a 90-degree elbow on it, does that drop dimension of 2.18 inches give enough clearance when you're working in tight spots around a crowded valve block?

Question by: Rick C on Mar 19, 2026, 9:42 PM

For confined routing situations, that 2.18-inch drop is worth accounting for before you commit to the assembly. The long drop elbow geometry on this fitting is meant to give you the offset you need to clear obstructions and route hose without sharp bends, but you'll want to confirm your available vertical clearance matches up with that dimension before installation. The 0.84-inch width is fairly compact, so side-to-side space usually isn't the issue. It's that drop that needs room.

Answer by: Customer Support on Mar 21, 2026, 9:38 AM
