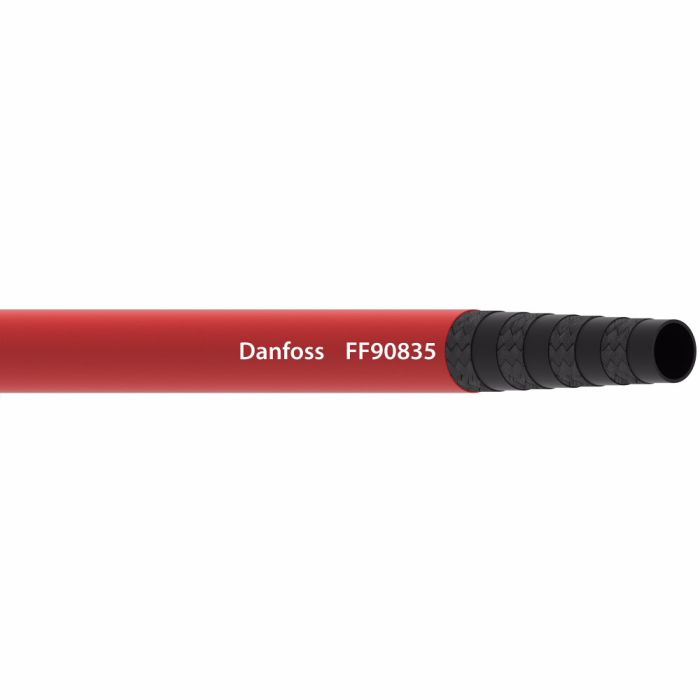

Danfoss / Eaton;Danfoss / Eaton;Hose SiliconeSaeJ20 Red;FF90835-15;Elbow 90° Hot;Working Pressure 40 PSI FF90835-15

Specifications

Abrasion Resistance 28	Application Low pressure engine or coolant. High temperature application.	Certifications SAE J20	Color Red	Conductivity 30	Construction 4 Ply	Cover Material Silicone	Dash Size -15	Brand Danfoss (Aeroquip Inc-Industrial Hose)	Brand Aeroquip	Pack Size 1.00	UOM EA	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 6.50	Minimum Bend Radius 6.5	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 70	Product Width 3.38	Reinforcement Material Aramid	Sub Brand None	Supplier Part Number FF90835-15	Tube Material Silicone	Product Weight 0.14 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot on a coolant run, how sharp can i bend this 90 elbow hose without kinkin it

Question by: Ralph P on Aug 20, 2025, 9:08 PM

For fit and routing, the minimum bend radius is 6.5 inches, and it already has a 90 degree elbow built in to help turn the corner without forcing a tight bend.

Answer by: Customer Support on Aug 22, 2025, 6:06 PM

got a coolant line on a diesel that runs real hot, this hose hold up to that kind of environment?

Question by: Daryl H on Mar 30, 2026, 6:20 AM

Silicone construction on both the tube and cover handles high heat pretty well, and the aramid reinforcement adds durability under tough conditions. It's rated for continuous use down to -65°F on the low end, and the SAE J20 certification confirms it's built for high-temperature engine and coolant applications. The 4-ply build also gives it some extra toughness against abrasion where lines might rub against other components.

Answer by: Customer Support on Mar 31, 2026, 9:26 AM
