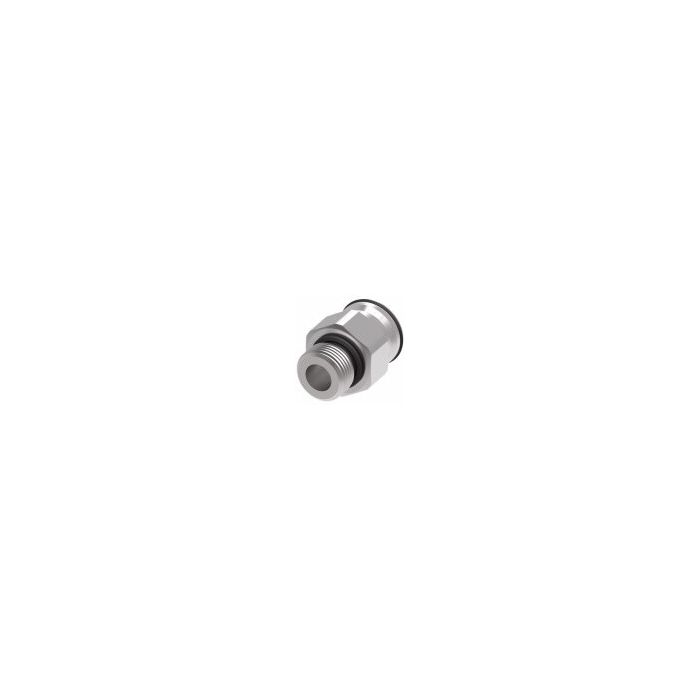

Danfoss / Eaton Male SAE ORing X FemaleS

Ask A Question
Certifications
DIN 2ST|SAE J1176|ASTM B117
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.56
End Size 2
0.38
End Type 1
SAE ORB
End Type 2
STC
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Straight Adapters
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
0.75
Sub Brand
None
Supplier Part Number
FF3042-0606S
Product Weight
0.07 lbs
Product Questions & Answers 3

Product Questions & Answers

got a hose setup with a 9/16 ORB on one side and need to land it into a 3/8 female STC. is that what this adapter is for?
Question by: Glen B on Jun 13, 2025, 7:35 AM
For tying those two ends together, it is a straight adapter with a 9/16 inch male SAE ORB on one side and a 3/8 inch female STC on the other, meant for a secure hydraulic line connection.
Answer by: Customer Support on Jun 14, 2025, 12:38 PM
Will this fitting hold up in a hydraulic system that sees some pretty cold weather?
Question by: Ray G on Sep 11, 2025, 8:10 AM
This fitting has a minimum working temperature of -40°F, making it suitable for cold-climate and industrial applications.
Answer by: Customer Support on Sep 12, 2025, 3:39 PM
What exactly is the connection setup on this fitting? Got a 9/16 male end on one side and trying to figure out what the other side hooks up to.
Question by: Rod C on Sep 25, 2025, 7:09 PM
One end is a 9/16" Male SAE O-Ring Boss, and the other is a 3/8" Female STC. The SAE ORB side threads into a port and seals with an o-ring rather than relying on thread sealant. The STC end accepts a matching female push-to-connect or swaged fitting on the hose side. It's a straight adapter, so there's no angle or offset built in.
Answer by: Customer Support on Sep 27, 2025, 4:14 PM
