Alternate Part NumberC1HR62, Alternate Part Number MI-00306451, Alternate Part Number MINO-00015F55529
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE J1453
Drop Dimension
1.25
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.81
End Size 2
0.38
End Type 1
ORS
End Type 2
NPTF
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Does this adapter hold up in saltwater or wet marine environments, or is it gonna rust out on me after a season or two?
Question by: Merle T on Jan 30, 2026, 11:32 AM
Corrosion resistance is handled by the Dura-Kote plating, which is specifically why this fitting gets used in marine and offshore drilling applications. Carbon steel on its own would be a concern in those conditions, but the plating is what makes the difference here. It's rated for those environments right out of the box.
Answer by: Customer Support on Feb 1, 2026, 6:13 AM
got a tight spot on a hose run. is this the 90 degree elbow that goes from an ORS male over to a 3/8 NPTF male?
Question by: Clint T on Mar 10, 2026, 5:47 PM

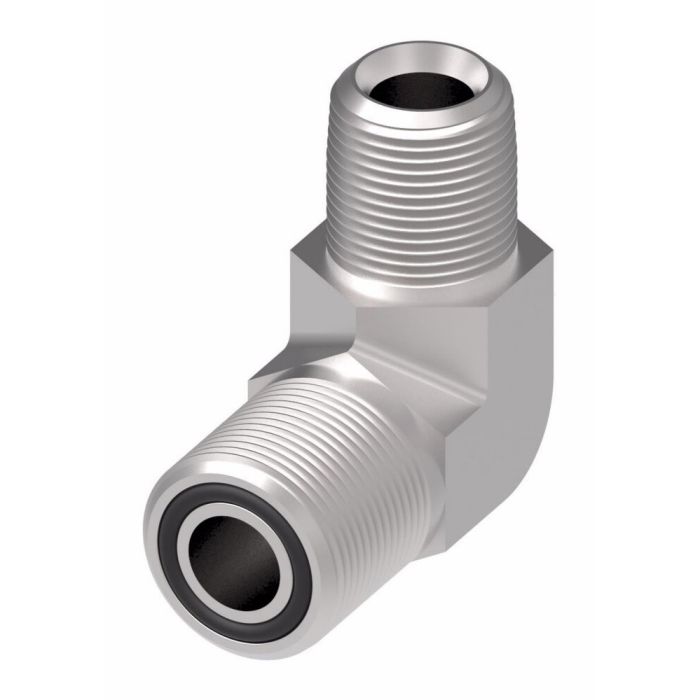

For making a right angle turn between two different thread styles, it fits that job. It is an ORS male to NPTF male 90° elbow adapter, with End Size 1 listed as 0.8125 on the ORS side and End Size 2 listed as 0.375 on the NPTF side.
Answer by: Customer Support on Mar 11, 2026, 5:58 PM
Will this Eaton adapter work with standard NPT fittings, or is there somethin' special I need to know?
Question by: Bobby H on Mar 29, 2026, 6:28 AM
It's designed with an NPTF (National Pipe Taper Fuel) end, which is compatible with standard NPT fittings but provides a tighter seal, especially important in hydraulic applications. Just make sure your mating part is also NPT or NPTF.
Answer by: Customer Support on Mar 31, 2026, 6:38 AM
