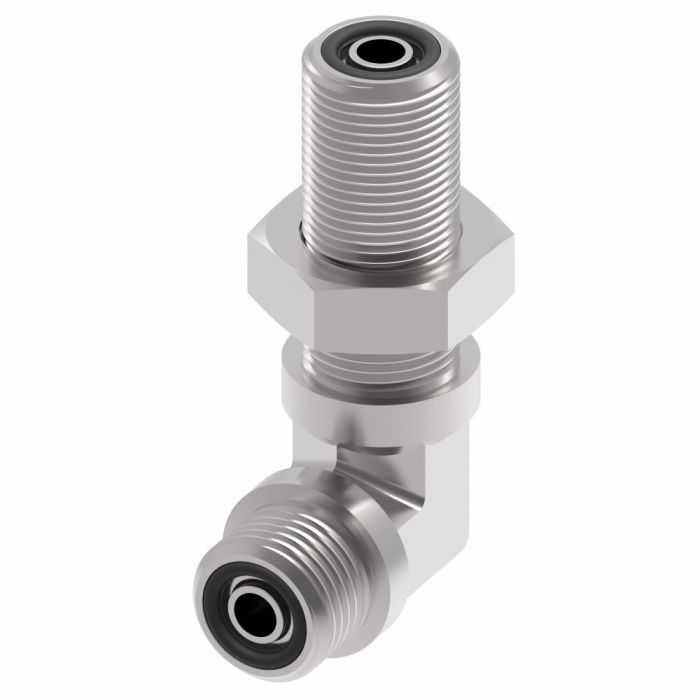

DANFOSS / EATON ADP 6 ORS 6 ORS ELL FF2030T0606S

Specifications

Alternate Part Numbers Alternate Part Number C1FZ53	Certifications SAE J1453	Drop Dimension 1.02	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Size 1 0.69	End Size 2 0.75	End Type 1 ORS	End Type 2 ORS	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 1	ICC Elbow Adapters	Item Type ORS Male/ORS Male 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 1	Sub Brand None	Supplier Part Number FF2030T0606S	Product Weight 0.32 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this'll hold up alright in a hydraulic system that runs pretty hot sometimes?

Question by: Chad G on Jun 27, 2025, 6:33 AM

This adapter is rated down to -65°F, so high operating temperatures shouldn't be an issue. Just make sure your system's pressures are within spec.

Answer by: Customer Support on Jun 29, 2025, 6:25 AM

trying to swap out a straight ORS adapter for an elbow, is this one ORS male on both ends?

Question by: Ronnie M on Jan 20, 2026, 6:58 PM

For tight hose routing where a straight fitting gets in the way, this adapter gives you a 90 degree turn with ORS male threads on both ends. It is an ORS male to ORS male elbow in the Eaton Aeroquip FF2030T Series.

Answer by: Customer Support on Jan 22, 2026, 5:44 PM

Got a tight bend in a hydraulic line where a straight fitting just ain't gonna cut it. This the kind of elbow that'd work for that situation?

Question by: Troy M on Sep 1, 2025, 8:15 AM

A 90-degree elbow adapter is exactly what handles those tight routing situations. The FF2030T0606S connects ORS male on both ends, one at 0.6875 inch and the other at 0.75 inch, so the two ports need to match those sizes. The drop dimension runs 1.02 inches and the hex is 1 inch, so account for that clearance when you're checking fit in the space you're working with. Carbon steel construction with Dura-Kote plating gives it good corrosion resistance for typical hydraulic environments.

Answer by: Customer Support on Sep 3, 2025, 6:42 AM
