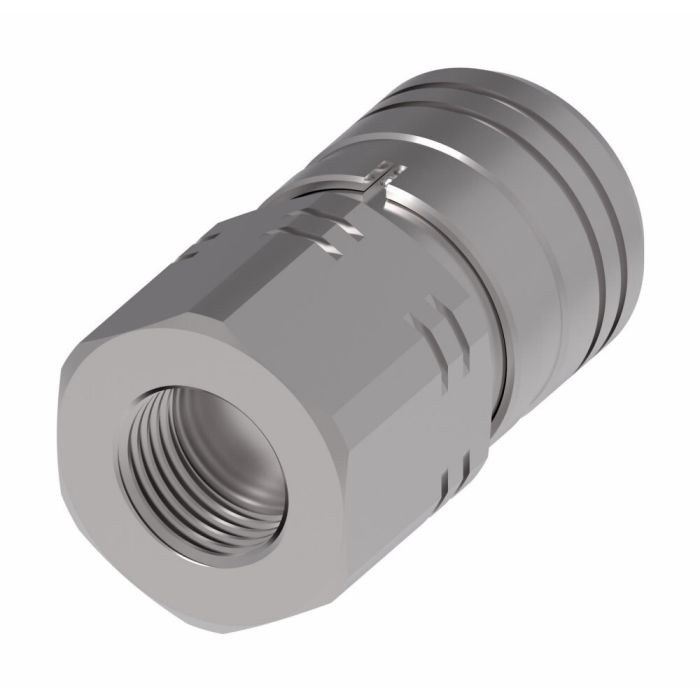

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -12 Coupling, -12 SAE Female Threads

A 3.80	Air Inclusion Max 0.02 Cubic_centimeter	Application Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size	B 1.82	Coupling Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 0.75	End Type 1 Push to Connect	End Type 2 SAE	Fluid Loss 0.03 Cubic_centimeter	Minimum Working Temperature -13	Safety locking Mechanism Sleeve lock	Seal Material NBR+AU	Supplier Part Number 19FFS106UN	Thread 1 -12 SAE	Thread Sealant No	Torque Rating 48.3 lb/ft	Torque Rating 48.3 lb/ft	Alternate Part Numbers Alternate Part Number C1MX78	Product Weight 1.66 lbs

Product Questions & Answers 2

Product Questions & Answers

got a -12 line with -12 SAE female threads. is this the right female half for that setup?

Question by: Wayne P on Jun 24, 2025, 4:56 PM

The key details match up as a -12 coupling size with a -12 SAE threaded end, and it is the female half (socket) of the FF Series. It also uses a push-to-connect latch style on the coupling side.

Answer by: Customer Support on Jun 26, 2025, 2:44 PM

Will this here fitting work alright for hooking up to some hydraulic tools?

Question by: Brent J on May 5, 2025, 3:07 PM

This Eaton/Danfoss FF series coupling is indeed suitable for hydraulic tool connections, as well as use on construction and agricultural equipment.

Answer by: Customer Support on May 6, 2025, 6:07 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
10FFS37	-06	3/8-18 NPT	NBR+AU	2.67	1.26
10FFS50	-06	1/2-14 NPT	NBR+AU	2.79	1.26
12FFS106UN	-08	-12 SAE	NBR+AU	3.5	1.5
12FFS50	-08	1/4-14 NPT	NBR+AU	3.27	1.5
19FFS106UN	-12	-12 SAE	NBR+AU	3.8	1.82
10FFS75UN	-06	-8 SAE	NBR+AU	2.79	1.26
