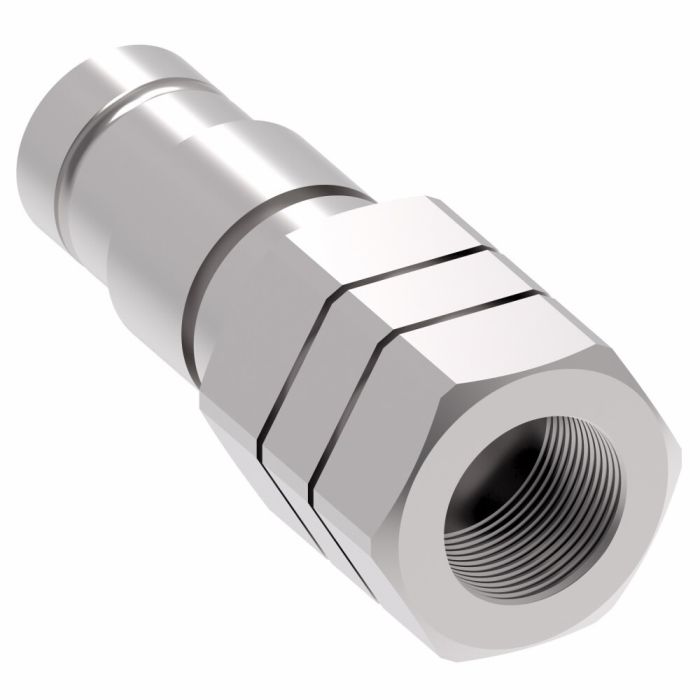

FF Series Flush Face Hydraulic Tool Quick Disconnect, Male Half, -12 Coupling, -12 SAE Female Threads

A 3.69	Air Inclusion Max 0.02 Cubic_centimeter	Application Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size	Coupling Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Type 1 Push to Connect	End Type 2 SAE	Fluid Loss 0.03 Cubic_centimeter	Minimum Working Temperature -13	Safety locking Mechanism Sleeve lock	Seal Material NBR+AU	Supplier Part Number 19FFP106UN	Thread 1 -12 SAE	Thread Sealant No	Torque Rating 48.3 lb/ft	Torque Rating 48.3 lb/ft	Alternate Part Numbers Alternate Part Number C1MX77	Product Weight 1.24 lbs

Product Questions & Answers 3

Product Questions & Answers

we got a bunch of older 3/8 htma couplings on our skid steers. gonna need to know if this male plug locks into them alright

Question by: Terry R on Jun 10, 2025, 6:19 AM

Making connections with existing HTMA hardware in the 3/8-inch size is fully supported by this plug. The globally accepted interface meets those exact requirements and also fits standard ISO 16028 dimensions. You just push to connect them together and the safety sleeve lock keeps everything secure.

Answer by: Customer Support on Jun 11, 2025, 6:59 AM

trying to match up a plug i already got, is this the male half with a -12 SAE female thread on it?

Question by: Dean S on Aug 4, 2025, 9:29 PM

This is the male half (plug) of the FF Series flush face quick disconnect, and the threaded end is -12 SAE female threads with a -12 coupling size.

Answer by: Customer Support on Aug 6, 2025, 9:47 AM

I need a male half for a quick disconnect. Will this fit standard SAE female threads?

Question by: Clint M on Mar 18, 2026, 2:46 PM

This coupling is designed with -12 SAE female threads, so it should fit your needs perfectly. It's also a push-to-connect type, making it easy to use.

Answer by: Customer Support on Mar 20, 2026, 1:51 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A
10FFP37	-06	3/8-18 NPT	NBR+AU	2.56
10FFP50	-06	1/2-14 NPT	NBR+AU	2.68
12FFP106UN	-08	-12 SAE	NBR+AU	2.95
12FFP50	-08	1/2-14 NPT	NBR+AU	2.71
19FFP106UN	-12	-12 SAE	NBR+AU	3.69
10FFP75UN	-06	3/4-16 NPT	NBR+AU	2.68
