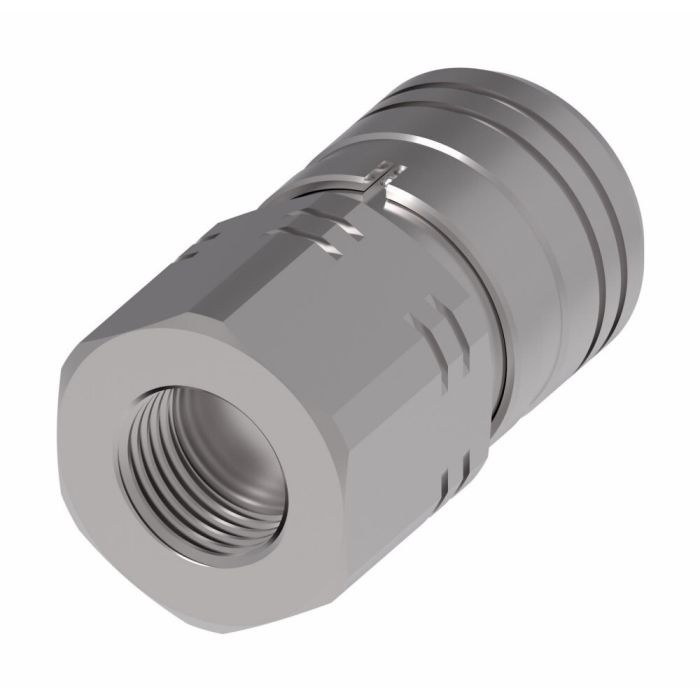

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -08 Coupling, -12 SAE Female Threads

Ask A Question
A
3.50
Air Inclusion Max
0.01 Cubic_centimeter
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
B
1.50
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.75
End Type 1
Push to Connect
End Type 2
SAE
Fluid Loss
0.01 Cubic_centimeter
Minimum Working Temperature
-13
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Supplier Part Number
12FFS106UN
Thread 1
-12 SAE
Thread Sealant
No
Torque Rating
43.8 lb/ft
Torque Rating
43.8 lb/ft
Alternate Part Numbers
Alternate Part Number BOBCAT QD, Alternate Part Number C1MX55, Alternate Part Number MI-06229508, Alternate Part Number MINO-00402X00261
Product Weight
1.10 lbs
Product Questions & Answers 3

Product Questions & Answers

got a -08 flush face setup already. is this the female half with -12 SAE female threads, or am i mixin stuff up?
Question by: Lyle P on Jul 17, 2025, 1:59 PM
For fit and hookups, 12FFS106UN is the FF Series flush face hydraulic tool quick disconnect female half in coupling size -08, and it has -12 SAE female threads on the threaded end. The connection style is push to connect, and it uses a sleeve lock to help prevent accidental disconnects.
Answer by: Customer Support on Jul 19, 2025, 6:35 AM
got standard HTMA fittings on our older attachments. will this plug couple up to those fine
Question by: Terry S on Dec 1, 2025, 8:31 PM
Connecting to standard HTMA couplings in the 3/8-inch size is fully supported by these female halves. The globally accepted interface meets ISO 16028 dimensional requirements so you get a secure fit across different equipment lines.
Answer by: Customer Support on Dec 3, 2025, 6:32 AM
What size threads does this coupling have? I'm hooking it up to an older piece of equipment and need to make sure it'll fit.
Question by: Cindy D on Apr 28, 2025, 6:57 PM
This Eaton Aeroquip FF Series quick disconnect has -12 SAE female threads, so you'll want to verify that matches your existing setup.
Answer by: Customer Support on Apr 30, 2025, 9:53 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
10FFS37 -06 3/8-18 NPT NBR+AU 2.67 1.26
10FFS50 -06 1/2-14 NPT NBR+AU 2.79 1.26
12FFS106UN -08 -12 SAE NBR+AU 3.5 1.5
12FFS50 -08 1/4-14 NPT NBR+AU 3.27 1.5
19FFS106UN -12 -12 SAE NBR+AU 3.8 1.82
10FFS75UN -06 -8 SAE NBR+AU 2.79 1.26
