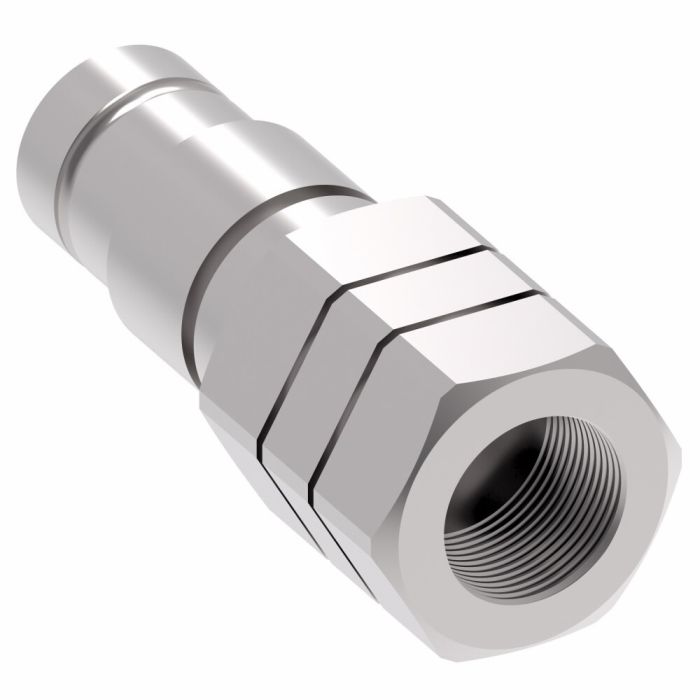

FF Series Flush Face Hydraulic Tool Quick Disconnect, Male Half, -08 Coupling, 1/2-14 NPT Female Threads

Ask A Question
A
2.71
Air Inclusion Max
0.01 Cubic_centimeter
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
0.01 Cubic_centimeter
Minimum Working Temperature
-13
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Supplier Part Number
12FFP50
Thread 1
1/2-14 NPT
Thread Sealant
No
Torque Rating
43.8 lb/ft
Torque Rating
43.8 lb/ft
Alternate Part Numbers
Alternate Part Number C1LW71, Alternate Part Number MI-06229500, Alternate Part Number MINO-00402F18475
Product Weight
0.64 lbs
Product Questions & Answers 3

Product Questions & Answers

got a 1/2-14 npt port on my tool, does this plug screw right in or am i missing something?
Question by: Dwayne H on May 29, 2025, 4:14 PM
The threaded end on this male half is 1/2-14 NPT female, so it mates with a 1/2-14 NPT male thread on your hose or tool. The coupling side is a push-to-connect -08 (1/2 inch) FF Series interface.
Answer by: Customer Support on May 31, 2025, 12:34 PM
we got old equipment running 3/8 HTMA couplings. is this going to hook up to those or is it just for 1/2 inch
Question by: Wayne S on Dec 13, 2025, 6:55 AM
Your existing 3/8 inch HTMA couplings will mate right up with this plug. Even though it features 1/2-14 NPT female threads for your hose connection, the quick disconnect face itself is an interchangeable -08 size built to the global ISO 16028 standard.
Answer by: Customer Support on Dec 14, 2025, 2:09 PM
been looking for something to swap out on my skid steer attachment lines, does this coupling work with HTMA fittings in the 3/8" size?
Question by: Lyle C on Oct 13, 2025, 6:21 PM
it's fully interchangeable with HTMA couplings in the 3/8" size, so it should drop right in without any adapter fuss. The interface also meets ISO 16028 dimensional requirements, which is a widely accepted standard across construction and ag equipment. The thread end is 1/2-14 NPT female, so just confirm your hose or port is male NPT on that end before ordering.
Answer by: Customer Support on Oct 15, 2025, 2:58 PM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Buy Now
10FFP37 -06 3/8-18 NPT NBR+AU 2.56
10FFP50 -06 1/2-14 NPT NBR+AU 2.68
12FFP106UN -08 -12 SAE NBR+AU 2.95
12FFP50 -08 1/2-14 NPT NBR+AU 2.71
19FFP106UN -12 -12 SAE NBR+AU 3.69
10FFP75UN -06 3/4-16 NPT NBR+AU 2.68
