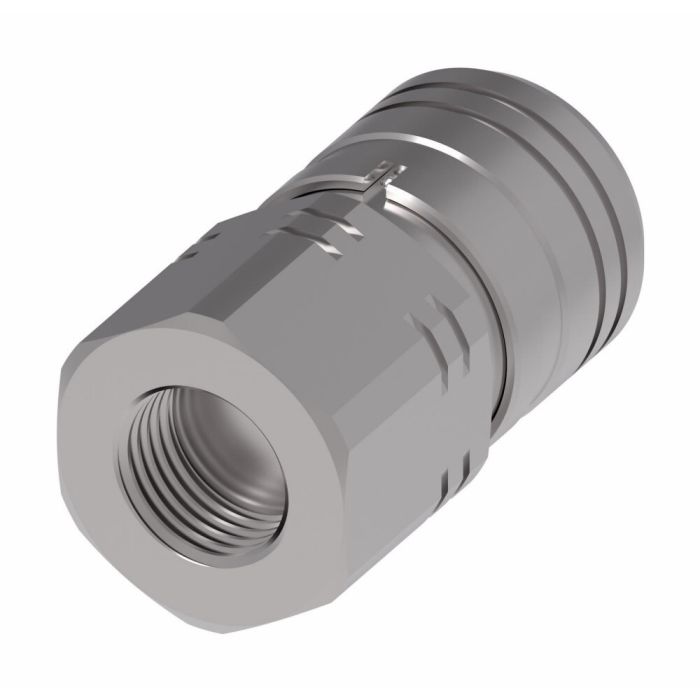

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -06 Coupling, -8 SAE Female Threads

Ask A Question
A
2.79
Air Inclusion Max
0.01 Cubic_centimeter
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
B
1.26
Coupling Size
-06
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
SAE
Fluid Loss
0.01 Cubic_centimeter
Minimum Working Temperature
-13
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Supplier Part Number
10FFS75UN
Thread 1
-8 SAE
Thread Sealant
No
Torque Rating
31.5 lb/ft
Torque Rating
31.5 lb/ft
Alternate Part Numbers
Alternate Part Number C1MP77, Alternate Part Number MI-06229465, Alternate Part Number MINO-00402F18477
Product Weight
0.53 lbs
Product Questions & Answers 3

Product Questions & Answers

got a skid steer with a busted female coupler on the hydraulic line, threads are -8 SAE and the coupling size is -06. this the right replacement?
Question by: Shawn A on Mar 8, 2026, 12:38 PM
For a -06 coupling with -8 SAE female threads, yes, that lines up exactly with what this part is spec'd for. The female half connects via Push-to-Connect latching on the coupling side and picks up the -8 SAE thread on the port end. Sleeve lock keeps it from backing out on its own during operation, which matters on a skid steer where things move around a lot. Seal material is NBR plus polyurethane, rated from -13°F up to 212°F, so standard outdoor working conditions aren't going to be a problem.
Answer by: Customer Support on Mar 10, 2026, 8:19 AM
got a hydraulic tool that uses the 3/8 HTMA style couplers, is this female half gonna swap in without a bunch of fuss?
Question by: Rex H on Nov 24, 2025, 2:03 PM
For HTMA style hookups in the 3/8 size, it is meant to interchange and it follows ISO 16028 dimensions. It is the female socket half in the FF Series, with a -06 coupling size and a sleeve lock to help prevent an accidental pull-off.
Answer by: Customer Support on Nov 26, 2025, 6:55 AM
Will this fitting work with standard hydraulic fluid, or do I need something special?
Question by: Norm W on May 16, 2025, 9:08 AM
Designed with NBR+AU seals, this quick disconnect is good to go with standard hydraulic fluids within a temperature range of -13°F to +212°F.
Answer by: Customer Support on May 18, 2025, 6:09 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
10FFS37 -06 3/8-18 NPT NBR+AU 2.67 1.26
10FFS50 -06 1/2-14 NPT NBR+AU 2.79 1.26
12FFS106UN -08 -12 SAE NBR+AU 3.5 1.5
12FFS50 -08 1/4-14 NPT NBR+AU 3.27 1.5
19FFS106UN -12 -12 SAE NBR+AU 3.8 1.82
10FFS75UN -06 -8 SAE NBR+AU 2.79 1.26
