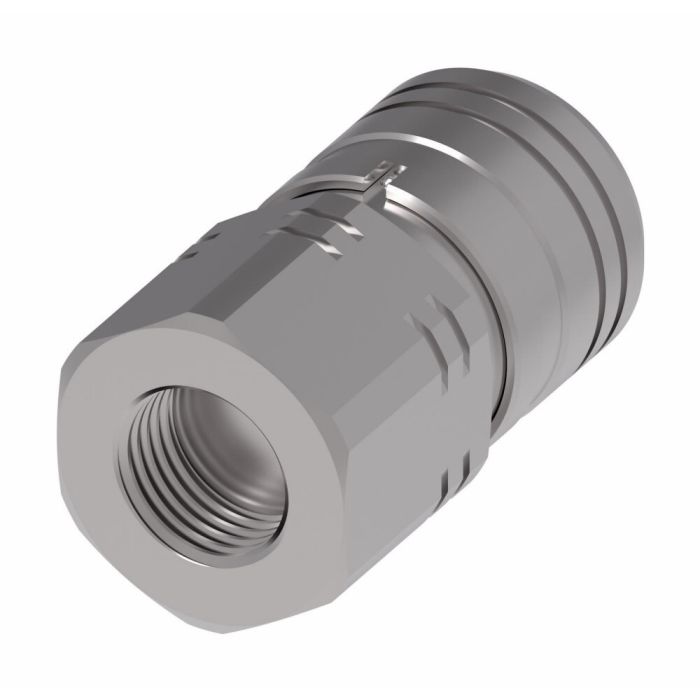

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -06 Coupling, 3/8-18 NPT Female Threads

Ask A Question
A
2.67
Air Inclusion Max
0.01 Cubic_centimeter
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
B
1.26
Coupling Size
-06
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.38
End Size 2
0.38
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
0.01 Cubic_centimeter
Minimum Working Temperature
-13
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Supplier Part Number
10FFS37
Thread 1
3/8-18 NPT
Thread Sealant
No
Torque Rating
31.5 lb/ft
Torque Rating
31.5 lb/ft
Alternate Part Numbers
Alternate Part Number C1KZ16, Alternate Part Number MI-06229453, Alternate Part Number MINO-00402F47043
Product Weight
0.54 lbs
Product Questions & Answers 3

Product Questions & Answers

got a older rig running htma couplings in 3/8 size. need to know if this socket matches up and what kinda threads it takes
Question by: Darryl A on Apr 18, 2025, 8:14 AM
Since it follows the standard HTMA interface for the 3/8-inch size, it will couple right up to your existing setup. The back end of the socket takes standard 3/8-18 NPT female threads for connecting to your lines.
Answer by: Customer Support on Apr 19, 2025, 8:23 PM
Will this quick disconnect work with my HTMA couplings?
Question by: Donna M on Aug 20, 2025, 1:21 PM
Yes, this Eaton / Danfoss Hansen FF Series socket is compatible with HTMA couplings in the 3/8" size, making it suitable for hydraulic and fluid transfer applications.
Answer by: Customer Support on Aug 22, 2025, 8:37 AM
trying to figure out if this'll hook up to my HTMA couplings on the 3/8 size -- does it actually interchange with those or do i need something different?
Question by: Duane M on Mar 28, 2025, 2:08 PM
Full interchangeability with HTMA couplings in the 3/8 inch size is built right into this coupling's design. It also meets the ISO 16028 dimensional standard, which covers sizes from 1/4 to 1 inch, so it fits within a pretty widely adopted interface spec. If your existing equipment uses HTMA-compatible connections at that size, this female half will mate up correctly.
Answer by: Customer Support on Mar 30, 2025, 7:21 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
10FFS37 -06 3/8-18 NPT NBR+AU 2.67 1.26
10FFS50 -06 1/2-14 NPT NBR+AU 2.79 1.26
12FFS106UN -08 -12 SAE NBR+AU 3.5 1.5
12FFS50 -08 1/4-14 NPT NBR+AU 3.27 1.5
19FFS106UN -12 -12 SAE NBR+AU 3.8 1.82
10FFS75UN -06 -8 SAE NBR+AU 2.79 1.26
