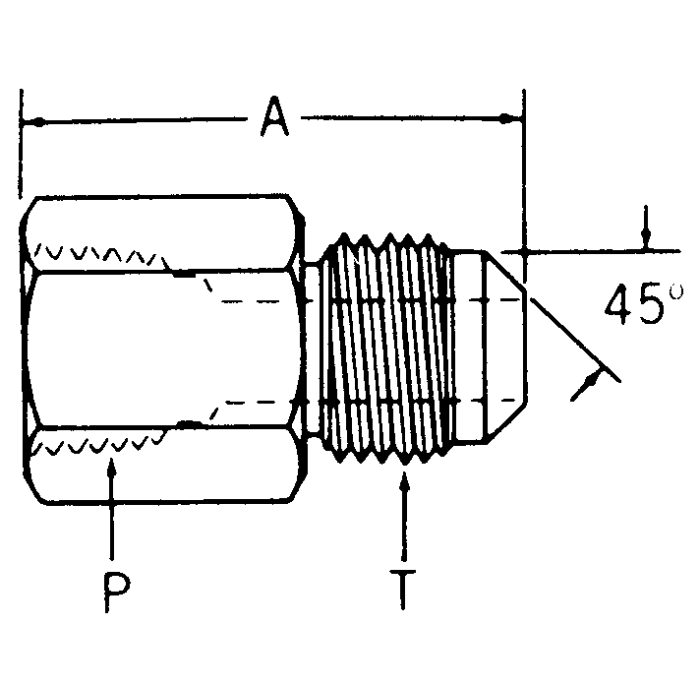

Brass Adapter, 1/4-18 Female NPT To 1/2-20 Male SAE 45 deg Flare, Straight

A 1.28	Alternate Part Numbers Alternate Part Number C1BG24, Alternate Part Number MI-08754449, Alternate Part Number MINO-01769X80108	Brand Midland Industries	Brand Midland Industries	Pack Size 1.00	UOM EA	Supplier Part Number 10233	Thread 1 1/4-18	Thread 2 1/2-20	Thread Sealant No	Tube O.D. 0.31	Tube O.D. 0.31	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this adapter work to connect a 1/4" female pipe thread to a 1/2" male flare?

Question by: Dustin P on Nov 10, 2025, 8:44 AM

Yes, it's designed to adapt a 1/4-18 female NPT to a 1/2-20 male SAE 45-degree flare connection.

Answer by: Customer Support on Nov 12, 2025, 8:12 AM

got a valve with 1/4-18 female NPT on it, will this adapter let me hook up a 5/16 tube flare line?

Question by: Steve F on Sep 17, 2025, 10:27 AM

Context wise, this is a straight pipe to 45 degree flare adapter. One end is 1/4-18 female NPT and the other end is a 1/2-20 male SAE 45 degree flare, which matches a 5/16 inch tube OD flare connection.

Answer by: Customer Support on Sep 19, 2025, 6:42 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
246X3	0.19	1/8-27	3/8-24	0.97
246X5X4	0.31	1/4-18	1/2-20	1.28
246X8X8	0.5	1/2-14	3/4-16	1.44
