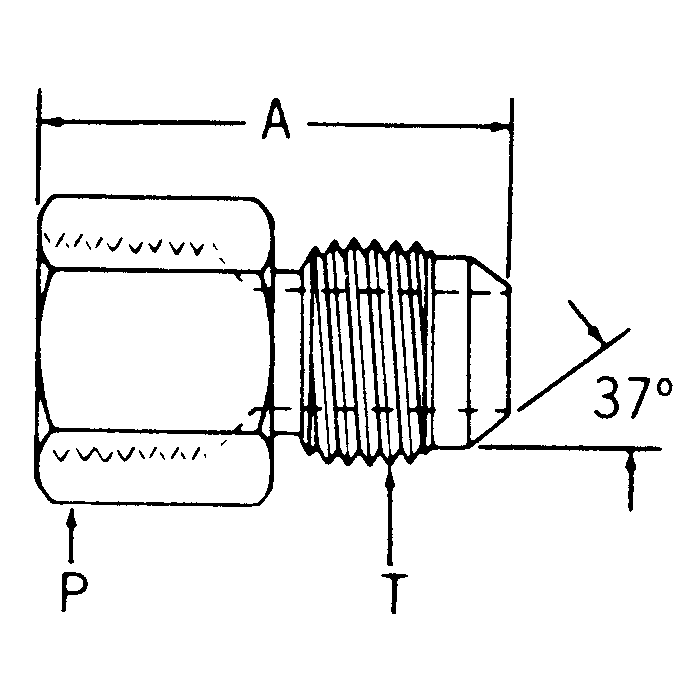

Steel Adapter, 3/8-18 Female NPT To 5/16-24 Male JIC 37 deg Flare, Straight

A 1.18	Alternate Part Numbers Alternate Part Number 2022-2-6S, Alternate Part Number C1BF70, Alternate Part Number MI-01510042, Alternate Part Number MINO-00028F61450	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2405-06-02	Thread 1 3/8-18	Thread 2 5/16-24	Thread Sealant No	Tube O.D. 0.13	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work for hooking up a hydraulic line to something with a 3/8-18 female NPT port? Just want to make sure before I order.

Question by: Daryl R on Nov 12, 2025, 9:28 PM

This steel adapter is indeed designed to connect a 3/8-18 female NPT to a 5/16-24 male JIC 37-degree flare, so it should fit your described application.

Answer by: Customer Support on Nov 14, 2025, 3:46 PM

got a 3/8 female NPT port on a small hydraulic block and need to run a JIC line off it, this the right adapter for that?

Question by: Cindy H on Feb 7, 2026, 4:12 PM

For a 3/8-18 female NPT port feeding into a 5/16-24 male JIC 37 degree flare connection, yeah, that's exactly what this part bridges. The male JIC end is sized for tube with a 0.13 inch outer diameter, so as long as your JIC line matches up on that end, you're good. Steel construction and no thread sealant required on the JIC side, so it's built to hold up in higher-pressure hydraulic setups without any extra prep work on that flare end.

Answer by: Customer Support on Feb 9, 2026, 7:42 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2022-20-20S	1.25	1-1/4-11-1/2	1-5/8-12	2.49
2022-4-4S	0.25	1/4-18	7/16-20	1.39
2022-4-6S	0.38	1/4-18	9/16-18	1.4
2022-4-8S	0.5	1/4-18	3/4-16	1.55
2022-6-6S	0.38	3/8-18	9/16-18	1.46
2022-12-10S	0.63	3/4-14	7/8-14	1.59
2022-12-12S	0.75	3/4-14	1-1/16-12	2.06
2022-12-16S	1	3/4-14	1-5/16-12	1.78
2022-12-8S	0.5	3/4-14	3/4-16	1.85
2022-16-16S	1	1-11-1/2	1-5/16-12	2.35
2022-2-3S	0.19	1/8-27	3/8-24	0.72
2022-2-4S	0.25	1/8-27	7/16-20	1.19
2022-20-16S	1	1-1/4-11-1/2	1-5/16-12	2.38
2022-24-24S	1.5	1-1/2-11-1/2	1-7/8-12	2.62
2022-32-32S	2	2-11-1/2	2-1/2-12	3
2022-4-5S	0.31	1/4-18	1/2-20	1.39
2022-6-8S	0.5	3/8-18	3/4-16	1.56
2022-8-10S	0.63	1/2-14	7/8-14	1.89
2022-8-12S	0.75	1/2-14	1-1/16-12	2.05
2022-8-4S	0.25	1/2-14	7/16-20	1.47
2022-8-6S	0.38	1/2-14	9/16-18	1.69
2022-8-8S	0.5	1/2-14	3/4-16	1.79
2405-04-06	0.25	3/8-18	7/16-20	1.43
2405-06-02	0.13	3/8-18	5/16-24	1.18
2405-20-16	1.25	1-11-1/2	1-5/8-12	2.4
