Female Din Soft Seal Union

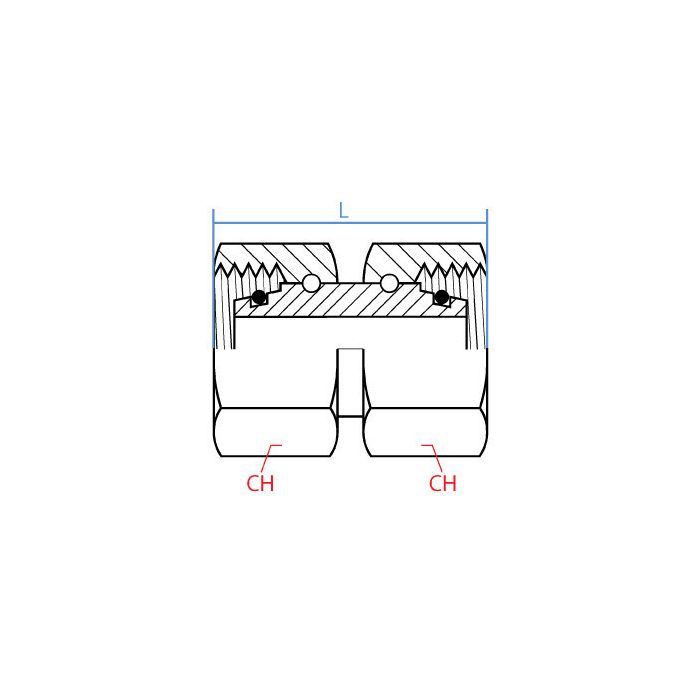

CH1 Width 41mm	CH2 Width 36mm	L Length 59.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender F	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size L28	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5300L-28	Product Weight 0.82 lbs

Product Questions & Answers 1

Product Questions & Answers

both sides on this union are L28 DIN tube -- does that mean it's strictly a same-size connection, or can it bridge different tube sizes?

Question by: Howard F on Jun 23, 2025, 6:57 AM

Both sides are identical, L28 DIN tube on each end with an M36 x 2.0 thread callout, so yeah, this is built for joining two lines of the same size. It's a union in the truest sense, meant to reconnect or extend matching DIN tube runs without stepping up or down in size. If you've got two L28 DIN tube ends that need to come together, this is exactly what you'd reach for.

Answer by: Customer Support on Jun 24, 2025, 2:33 PM
