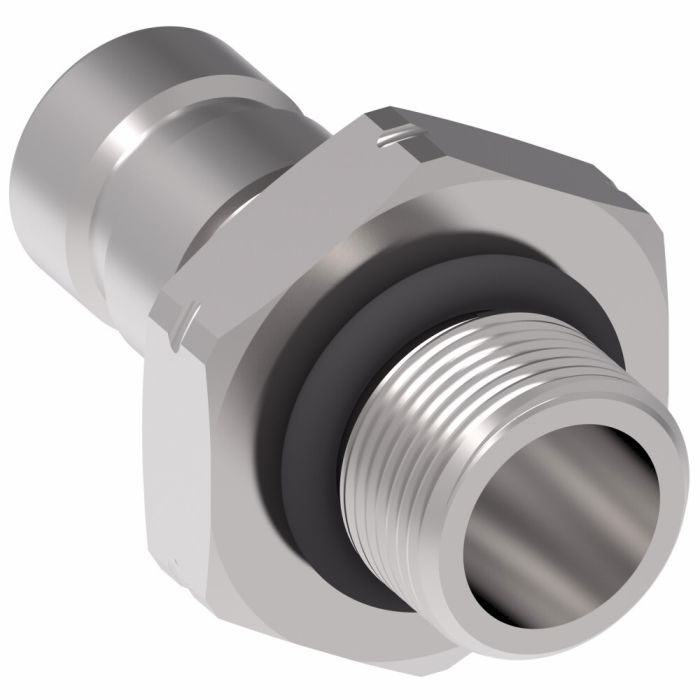

FD90 Series SAE J1502 Interchange Diagnostic Quick Disconnect, Male Half, -04 Coupling, M 14 x 1.5 Male Metric O-Ring

A 1.38	Air Inclusion Max 0.02 Cubic_centimeter	Application Diagnostic pressure testing for hydraulic systems	Coupling Size -04	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Type 1 Push to Connect	End Type 2 Metric	Fluid Loss 0.10 Cubic_centimeter	Minimum Working Temperature -40	Safety locking Mechanism Sleeve lock	Seal Material Buna-N	Supplier Part Number FD90-1046-06-04	Thread 1 M 14 x 1.5	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1FZ49, Alternate Part Number MI-00298676, Alternate Part Number MINO-00015F47103	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

got a test point hose with an M14 x 1.5 end, is this the right male half to snap into it?

Question by: Shane T on Aug 2, 2025, 9:56 AM

For diagnostic pressure testing setups that use an M 14 x 1.5 male metric O-ring thread, this FD90 Series male half matches that thread callout and is a -04 coupling size with a push-to-connect end.

Answer by: Customer Support on Aug 3, 2025, 7:15 PM

Is this the right fitting to test the pressure on my hydraulic system?

Question by: Daryl B on Apr 7, 2025, 7:02 AM

This FD90 series quick disconnect male half coupling is designed specifically for diagnostic pressure testing on hydraulic systems, so it should work well for that purpose.

Answer by: Customer Support on Apr 8, 2025, 9:46 PM

Does this coupling let you connect it with just one hand, or do you need to hold both ends steady while you push it together?

Question by: Gary P on Mar 28, 2026, 6:40 AM

One hand is all it takes. The automatic sleeve design lets you push to connect without needing to stabilize the other end manually. That makes it a lot easier when you're working in tight spots on a hydraulic system and can't get both hands in there comfortably.

Answer by: Customer Support on Mar 29, 2026, 9:17 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	Price	Buy Now
FD90-1046-06-04	-04	M 14 x 1.5	Buna-N	1.38
