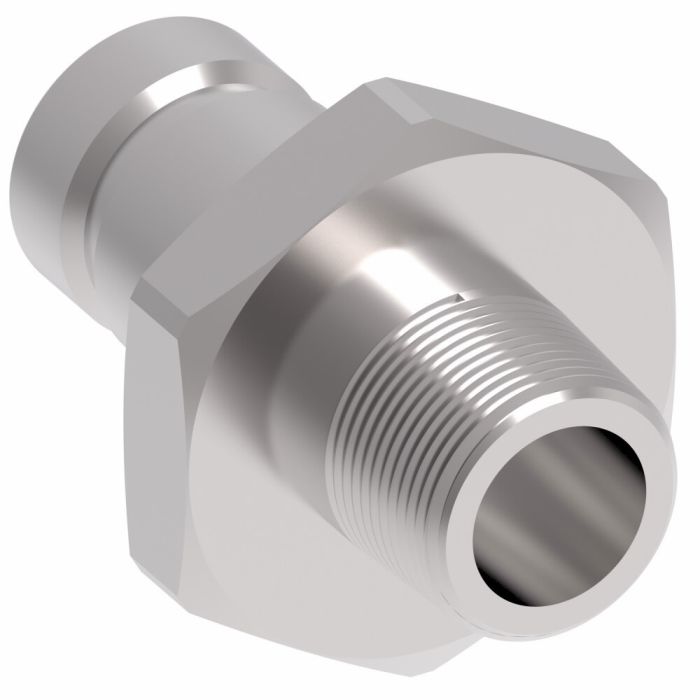

main product photo

FD90 Series SAE J1502 Interchange Diagnostic Quick Disconnect, Male Half, -04 Coupling, 1/8-27 Male NPT

Ask A Question
A
1.60
Air Inclusion Max
0.02 Cubic_centimeter
Application
Diagnostic pressure testing for hydraulic systems
Coupling Size
-04
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.13
End Size 2
0.13
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
0.10 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
Sleeve lock
Seal Material
Buna-N
Supplier Part Number
FD90-1012-02-04
Thread 1
1/8-27
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1FK54, Alternate Part Number MI-00298655, Alternate Part Number MINO-00015F47087
Product Weight
0.35 lbs
Product Questions & Answers 3

Product Questions & Answers

got a test port that’s 1/8-27 nptf. is this the right male half for a -04 diagnostic quick disconnect?
Question by: Steve R on Apr 29, 2025, 10:02 AM
The key details match up: it is the male half in the FD90 Series with a -04 coupling size and 1/8-27 male NPTF threads, intended for diagnostic pressure testing in hydraulic systems.
Answer by: Customer Support on Apr 30, 2025, 9:03 PM
Wondering if this’ll work for hydraulic pressure testing on my tractor?
Question by: Freddie P on Jul 22, 2025, 8:22 AM
This FD90 series fitting is designed specifically for diagnostic pressure testing in hydraulic systems. The self-sealing valve lets you connect and disconnect with up to 500 psi pressure in the line.
Answer by: Customer Support on Jul 23, 2025, 12:02 PM
what's the fluid loss on this thing when you connect or disconnect it? trying to keep my test rig clean and don't want hydraulic fluid spraying everywhere every time i hook up a gauge
Question by: Peggy S on Aug 9, 2025, 9:26 PM
Fluid loss on connect and disconnect is held to 0.10 cubic centimeters, and air inclusion stays at 0.02 cubic centimeters. That flush face valve design is what keeps both of those numbers that low. For diagnostic work where you're swapping gauge ports regularly, that's about as clean as it gets in this coupling class.
Answer by: Customer Support on Aug 11, 2025, 1:58 PM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Buy Now
FD90-1012-04-04 -04 1/4-18 Buna-N 1.49
FD90-1012-02-04 -04 1/8-27 Buna-N 1.6
