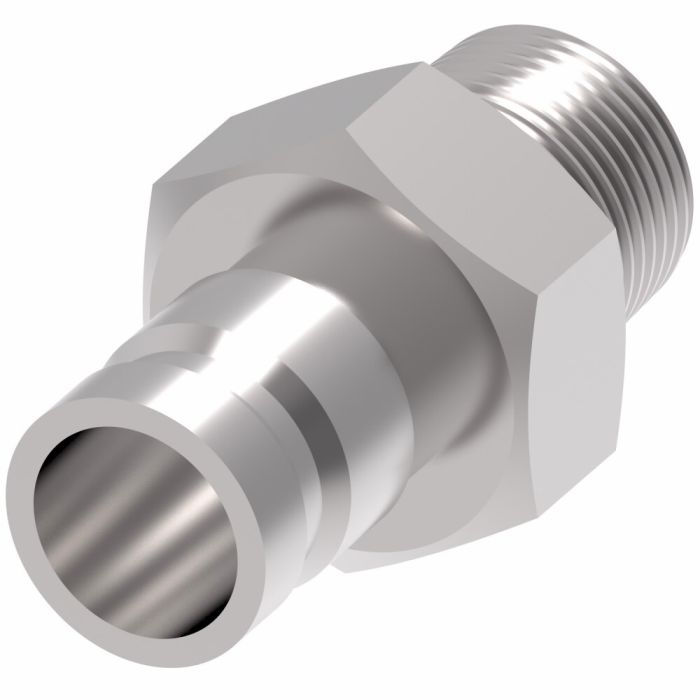

Diagnostic QD PLUG #5 M-SAE

Application Diagnostic pressure testing for hydraulic systems	Certifications SAE J1502 Interchange	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Size 2 0.50	End Type 1 Push to Connect	End Type 2 SAE ORB	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 0.6 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Male Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 50	Port Size 1/2	Product Material Carbon Steel	Product Width 0.62	Safety locking Mechanism Sleeve lock	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number FD90-1044-05-04	Valve Type 2 way	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this plug work with standard hydraulic pressure testing equipment?

Question by: Phil P on Feb 4, 2026, 2:29 PM

This diagnostic plug is designed for hydraulic systems, specifically for diagnostic pressure testing. Its SAE J1502 Interchange certification ensures compatibility with other components meeting this standard.

Answer by: Customer Support on Feb 6, 2026, 1:28 PM
