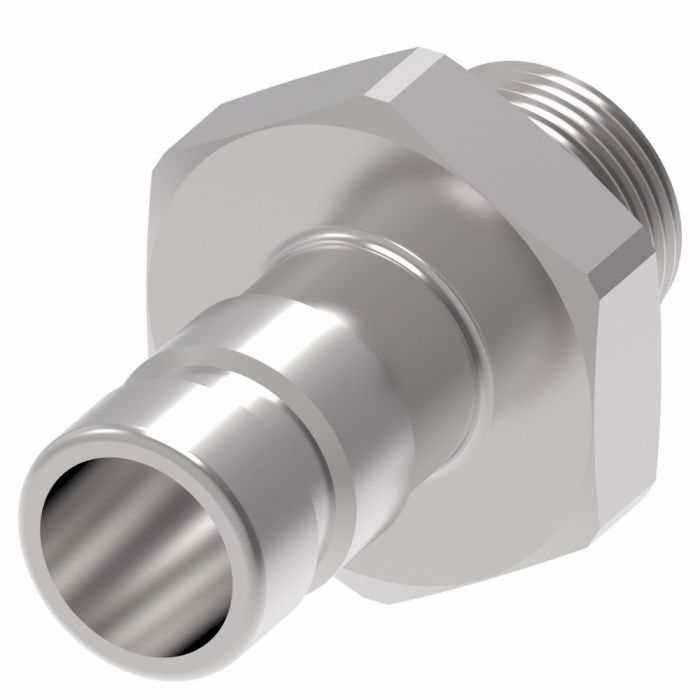

DANFOSS / EATON COUPLINGS - CODE CP FD90-1044-04-04

Specifications

Alternate Part Numbers Alternate Part Number MI-00298669, Alternate Part Number MINO-00015F47098	Application Diagnostic pressure testing for hydraulic systems	Certifications SAE J1502 Interchange	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Size 2 0.44	End Type 1 Push to Connect	End Type 2 SAE ORB	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 0.6 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Male Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 50	Port Size 7/16	Product Material Carbon Steel	Product Width 0.62	Safety locking Mechanism Sleeve lock	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number FD90-1044-04-04	Valve Type 2 way	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

What size port does this Eaton coupling use?

Question by: Tommy M on Sep 20, 2025, 6:43 PM

This coupling uses a 7/16" port size.

Answer by: Customer Support on Sep 22, 2025, 8:08 AM

got a diagnostic test point setup already, is this the male half plug for the FD90 series or am i lookin at the wrong piece

Question by: Curt F on Jul 12, 2025, 1:46 PM

For diagnostic pressure testing setups, this part is the male half plug in the Hansen FD90 Series quick disconnect line. It uses a push-to-connect style with a ball lock internal connection, and it is listed as SAE J1502 Interchange.

Answer by: Customer Support on Jul 13, 2025, 7:46 PM
