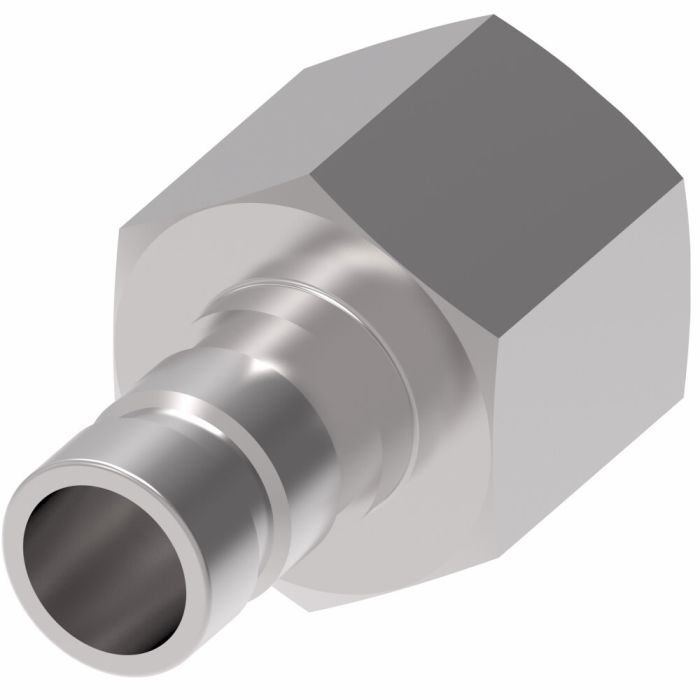

DANFOSS / EATON COUPLING

Application Diagnostic pressure testing for hydraulic systems	Certifications SAE J1502 Interchange	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPTF	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 0.6 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Male Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 50	Port Size 1/4	Product Material Carbon Steel	Product Width 0.62	Safety locking Mechanism Sleeve lock	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number FD90-1035-04-04	Valve Type 2 way	Product Weight 0.14 lbs

Product Questions & Answers 1

Product Questions & Answers

Reckon this fitting'll hold up alright for hydraulic pressure testing? Gotta make sure it won't leak under pressure.

Question by: Debbie R on Jul 15, 2025, 9:56 AM

Absolutely, it's built for diagnostic pressure testing in hydraulic systems. The internal ball lock mechanism with a sleeve lock helps ensure a secure, tool-free connection, and it exceeds ISO 16028 operating pressures, so it should do the trick.

Answer by: Customer Support on Jul 16, 2025, 9:51 PM
