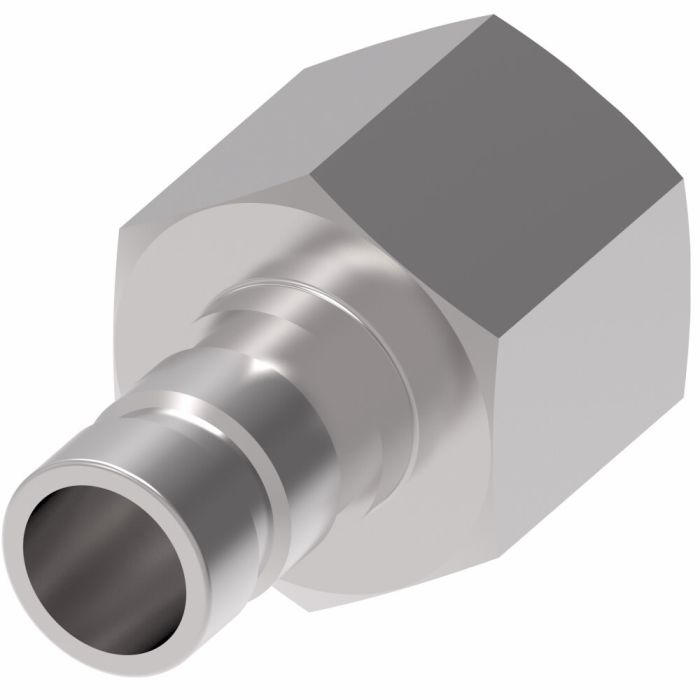

main product photo

DANFOSS / EATON COUPLING

Ask A Question
Application
Diagnostic pressure testing for hydraulic systems
Certifications
SAE J1502 Interchange
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 2
0.13
End Type 1
Push to Connect
End Type 2
NPTF
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
0.6 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Ball Lock
Item Type
Male Half
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Port Size
1/8
Product Material
Carbon Steel
Product Width
0.62
Safety locking Mechanism
Sleeve lock
Seal Material
Buna-N
Sub Brand
Hansen
Supplier Part Number
FD90-1034-02-04
Valve Type
2 way
Product Weight
0.09 lbs
Product Questions & Answers 3

Product Questions & Answers

Does this coupling work for both connecting and disconnecting without needing any tools? Got a guy on the floor asking before we order a handful of these.
Question by: Rusty R on Oct 22, 2025, 9:51 AM
no special tools needed. The push-to-connect design lets you hook it up and pull it apart by hand. The sleeve lock keeps it from accidentally popping loose while it's in use, so your guy doesn't have to worry about that either. It's built for test point work in hydraulic systems, so quick hands-on access was the whole idea behind it.
Answer by: Customer Support on Oct 23, 2025, 2:08 PM
got a test port that’s 1/8 NPTF female. is this the right piece to snap on for pressure checks
Question by: Bonnie C on Aug 10, 2025, 10:30 AM
For diagnostic pressure testing, this is the male half coupling in the Hansen FD90 Series with a push to connect end and a 1/8 inch NPTF female port. It uses a ball lock internal connection and a sleeve lock to help prevent accidental disconnects while you are taking readings.
Answer by: Customer Support on Aug 11, 2025, 5:41 PM
Can this coupling handle a little back-and-forth flow, or is it strictly one way?
Question by: Hank R on Jan 6, 2026, 12:06 PM
It's got a two-way valve design, so fluid can flow in either direction without issue.
Answer by: Customer Support on Jan 8, 2026, 11:42 AM
