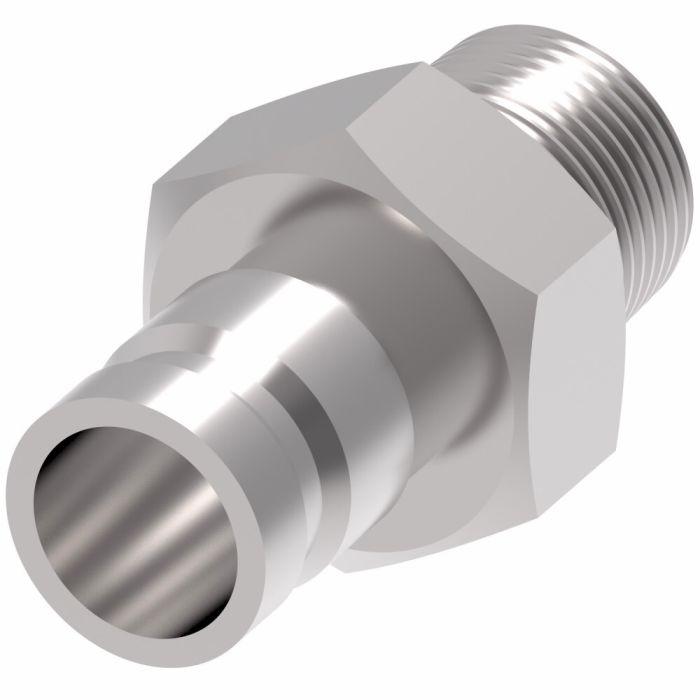

main product photo

Diagnostic QD PLUG #5 M-SAE W/CAP

Ask A Question
Application
Diagnostic pressure testing for hydraulic systems
Certifications
SAE J1502 Interchange
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
SAE ORB
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
0.6 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Ball Lock
Item Type
Male Half
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Port Size
1/2
Product Material
Carbon Steel
Product Width
0.62
Safety locking Mechanism
Sleeve lock
Seal Material
Buna-N
Sub Brand
Hansen
Supplier Part Number
FD90-1004-05-04
Valve Type
2 way
Product Weight
0.07 lbs
Product Questions & Answers 1

Product Questions & Answers

Is this plug compatible with standard hydraulic systems used for diagnostic testing?
Question by: Rod P on Oct 21, 2025, 6:06 AM
This diagnostic QD plug is designed specifically for pressure testing in hydraulic systems, so yes, it is. It's made to exceed ISO 16028 operating pressure thresholds.
Answer by: Customer Support on Oct 23, 2025, 8:47 AM
