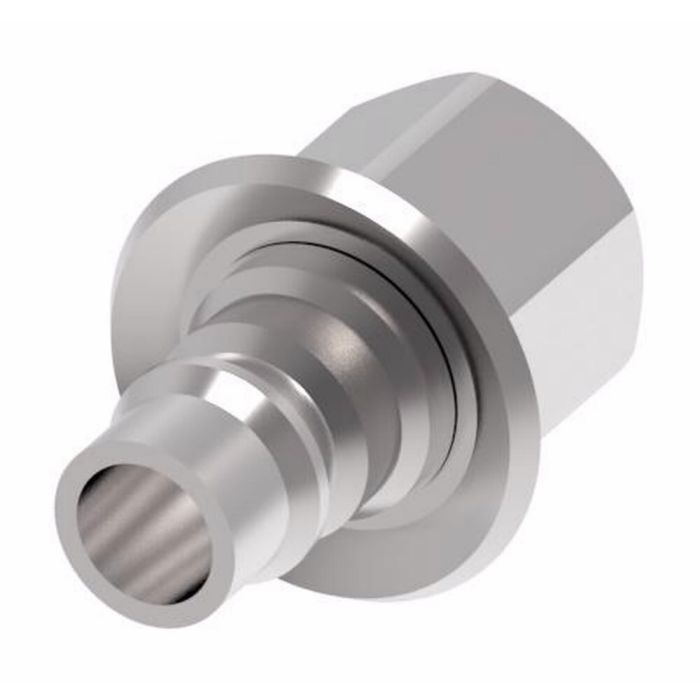

FD69 Series Arc Latch High Pressure Water Blast Quick Disconnect, Male Half, -08 Coupling, 1/2-14 Female NPT

Ask A Question
A
2.34
Application
High pressure water blast, Bridge/concrete repair, Paint stripping, Shipyards
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPT
Minimum Working Temperature
-4
Safety locking Mechanism
Sleeve lock
Seal Material
FKM
Supplier Part Number
FD69-1002-08-08
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1CU33
Product Weight
0.33 lbs
Product Questions & Answers 2

Product Questions & Answers

What size thread does this plug have?
Question by: Marvin E on Oct 19, 2025, 7:42 AM
It comes with a 1/2-14 Female NPT port.
Answer by: Customer Support on Oct 21, 2025, 6:58 AM
Got a water blasting rig running 1/2-14 female NPT ports, will this male half couple straight up to that without any adapters in between?
Question by: Freddie P on May 21, 2025, 9:31 AM
A 1/2-14 Female NPT port is exactly what this coupling is built to thread into. The male half connects push-to-connect on the coupling end, and the NPT side threads directly into your female port. No adapter needed for that configuration.
Answer by: Customer Support on May 23, 2025, 7:10 AM

Similar Products

Model Number Coupling Size Thread 1 A Price Buy Now
FD69-1002-08-08 -08 1/2-14 2.34
