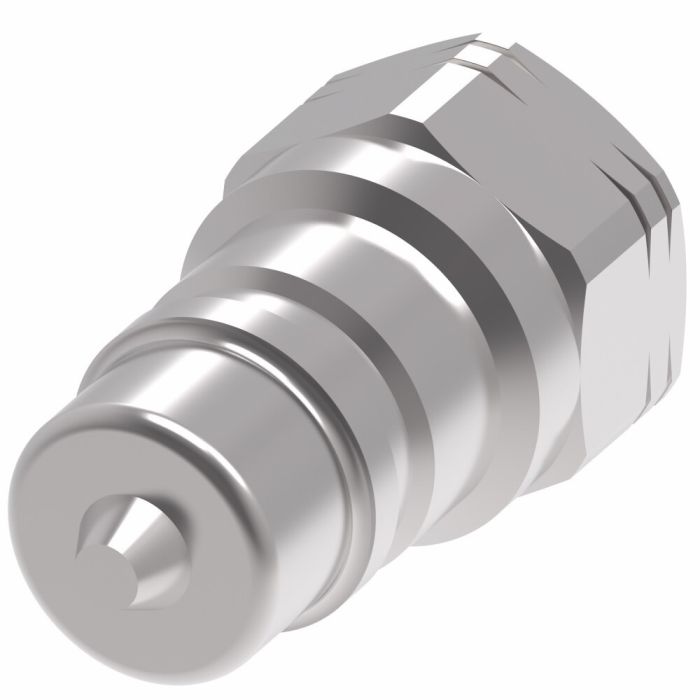

DANFOSS / EATON COUPLING FD56-1037-06-06

Specifications

Application Hydraulics and fluid transfer, On-highway hydraulic wet lines, Dump and refuse vehicles, Bulk liquid transfer	Certifications ISO 7241-1 Series A	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 2 0.38	End Type 1 Push to Connect	End Type 2 NPT	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 6 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Male Half	Language English	Minimum Working Temperature -15	Net Pack Quantity Units EA	NMFC 50	Port Size 3/8	Product Material Carbon Steel	Product Width 1.08	Seal Material FKM	Sub Brand Hansen	Supplier Part Number FD56-1037-06-06	Valve Type 2 way	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

got a wet line on a dump trailer. is this the right kind of quick coupler for that job

Question by: Todd S on Nov 1, 2025, 5:38 PM

For on highway hydraulic wet lines and dump or refuse vehicles, the Hansen FD56 Series quick disconnect is a common fit. It is built for demanding hydraulic and fluid transfer work and uses a quick connect and disconnect setup that does not require special tools.

Answer by: Customer Support on Nov 3, 2025, 6:43 AM

Got a dump truck that needs a quick-connect fitting on the wet line, does this one hook up without any extra tools or adapters, and what size port am I working with?

Question by: Dwayne W on Sep 7, 2025, 2:34 PM

No tools needed to connect or disconnect it, which makes swapping lines on the job a lot quicker. The port size is 3/8 inch NPT on the female end, and the male half uses a push-to-connect setup with an internal ball lock to hold it secure once it's seated. Built for exactly the kind of wet line and dump vehicle work you're describing.

Answer by: Customer Support on Sep 9, 2025, 7:00 AM
