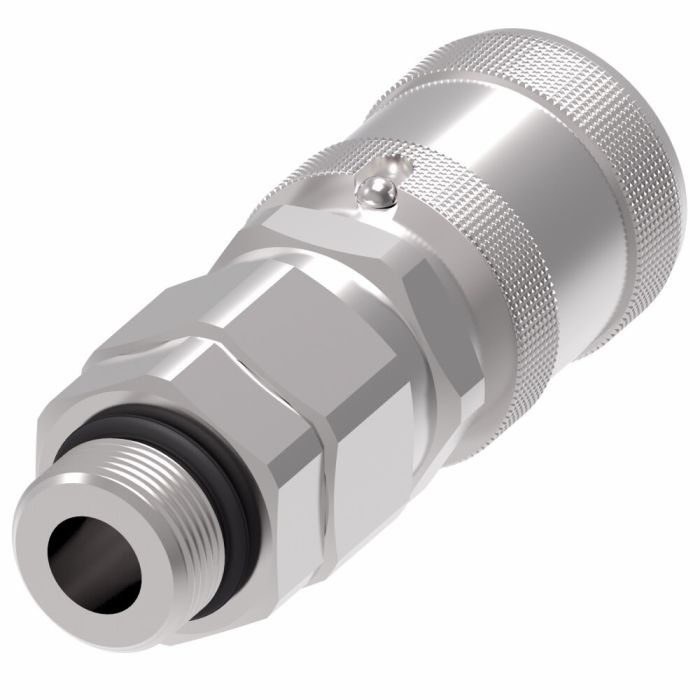

DANFOSS / EATON COUPLINGS - CODE CP

Application Hydraulic tool (HTMA interchange), Hydraulic and fluid transfer	Certifications NFPA Standard T3.20.15 HTMA Interchange	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 0.75	End Size 2 0.38	End Type 1 ORB	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 10 gallons per minute	Hex Size 2 1.06	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Female Half	Language English	Minimum Working Temperature -30	Net Pack Quantity Units EA	NMFC 50	Port Size 3/8	Product Material Carbon Steel	Product Width 1.20	Safety locking Mechanism Push Button	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number FD49-1014-08-06	Valve Type 2 way	Product Weight 0.58 lbs

Product Questions & Answers

What size is the threaded part where I hook up my hydraulic line? Is it the same on both ends?

Question by: Dean M on Oct 28, 2025, 7:39 PM

The port where you connect your hydraulic line is 3/8". The other end, the inlet, is 3/4" ORB (O-ring boss). So, they're different sizes.

Answer by: Customer Support on Oct 30, 2025, 6:33 PM
