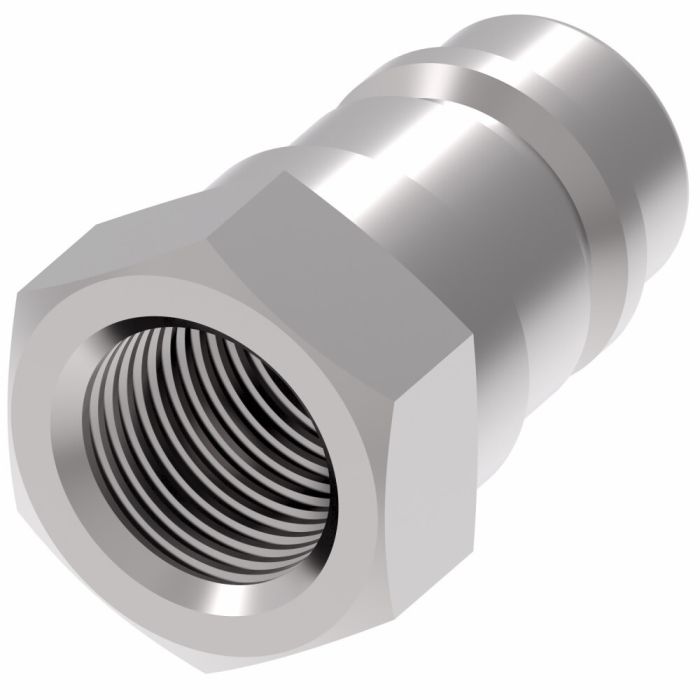

Danfoss / Eaton HYD TOOL COUP M Half FD35-1002-06-06

Specifications

Application 10,000 psi hydraulic applications, Hydraulic tool, Hydraulic ram and work loading	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 2 0.38	End Type 1 Push to Connect	End Type 2 NPTF	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 2 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Male Half	Language English	Minimum Working Temperature -30	Net Pack Quantity Units EA	NMFC 50	Port Size 3/8	Product Material Carbon Steel	Product Width 0.94	Safety locking Mechanism Sleeve lock	Seal Material FKM	Sub Brand Hansen	Supplier Part Number FD35-1002-06-06	Product Weight 0.18 lbs

Product Questions & Answers 2

Product Questions & Answers

push-to-connect on something rated to 10,000 psi, how's that staying locked in under that kind of pressure?

Question by: Merle M on Oct 19, 2025, 3:52 PM

Ball lock internals handle the primary connection hold, and on top of that there's a sleeve lock safety mechanism that keeps everything from backing out under load. Both systems work together, so you're not relying on just one point of retention at full pressure. The coupling also exceeds ISO 16028 operating pressure requirements, which is the relevant standard for this class of hydraulic quick disconnects.

Answer by: Customer Support on Oct 21, 2025, 6:16 AM

reckon this'll hold up alright for hooking up to my hydraulic ram on the farm equipment?

Question by: Debbie S on Jun 4, 2025, 7:48 AM

It’s rated for 10,000 psi hydraulic applications, so it should be plenty strong enough for hydraulic ram and work loading uses. It's built with a ball lock internal connection, plus a sleeve lock safety, so the connection ought to stay put even under high demand.

Answer by: Customer Support on Jun 5, 2025, 11:47 AM
