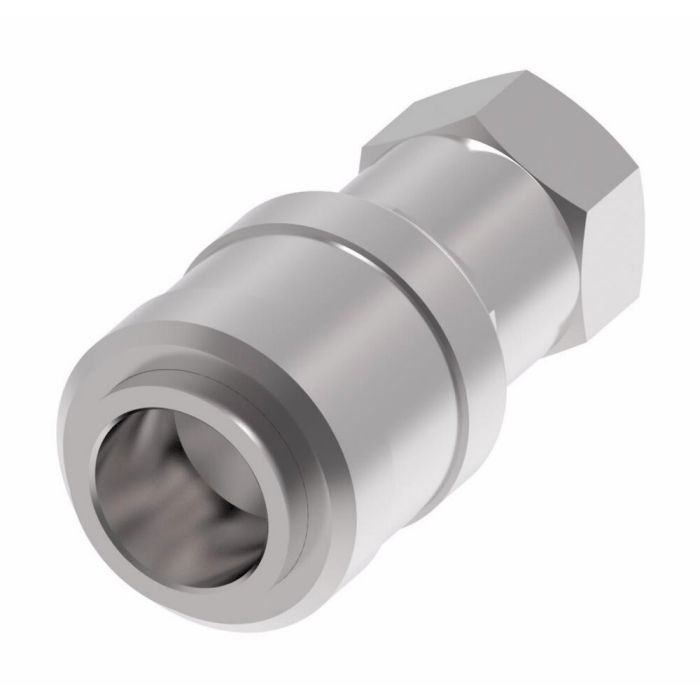

main product photo

Danfoss / Eaton HYD TOOL COUP F Half

Ask A Question
Application
10,000 psi hydraulic applications, Hydraulic tool, Hydraulic ram and work loading
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 2
0.38
End Type 1
Push to Connect
End Type 2
NPTF
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
2 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Ball Lock
Item Type
Female Half
Language
English
Minimum Working Temperature
-30
Net Pack Quantity Units
EA
NMFC
50
Port Size
3/8
Product Material
Carbon Steel
Product Width
1.27
Safety locking Mechanism
Sleeve lock
Seal Material
FKM
Sub Brand
Hansen
Supplier Part Number
FD35-1001-06-06
Product Weight
0.46 lbs
Product Questions & Answers 3

Product Questions & Answers

What kinda pressure can this handle? I'm workin' with some pretty heavy-duty stuff.
Question by: Brett B on Mar 19, 2026, 5:46 PM
This Eaton Aeroquip Hansen FD35 Series coupling is designed for hydraulic applications up to 10,000 psi, which should be suitable for demanding hydraulic tools and rams.
Answer by: Customer Support on Mar 21, 2026, 1:53 PM
got a 3/8 NPTF port on my tool, is this the right female half to thread in?
Question by: Todd O on Mar 7, 2026, 4:42 PM
It’s set up with a 3/8 NPTF threaded end on one side and a push-to-connect interface on the other, and it’s the female half of the coupling.
Answer by: Customer Support on Mar 8, 2026, 6:09 PM
Push-to-connect on this thing, does that mean I don't gotta use any wrenches or special tooling to hook it up?
Question by: Freddie H on Oct 21, 2025, 11:47 AM
Correct on that. The push-to-connect end lets you make the connection without reaching for any tools. The sleeve lock safety mechanism keeps it seated once it's engaged, so you're not dealing with accidental disconnects under pressure either. The threaded side is NPTF, so that end does need to be made up properly when you install it into your port, but the quick connect side itself is hand-operated.
Answer by: Customer Support on Oct 23, 2025, 6:29 AM
