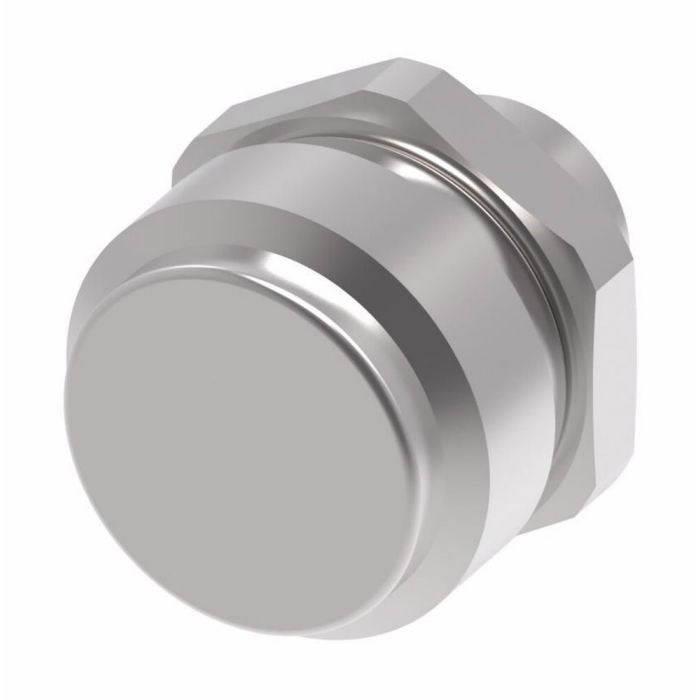

FD14 Series Oil Drain Coupling, Male Half, M22 x 1.5 6g Thread

A 1.54	Application Automated oil evacuation systems. Gravity drain oil evacuation systems.	B 0.96	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Size 1 0.50	End Size 2 0.38	End Type 1 Metric	Minimum Working Temperature -40	Rated Flow 0.68	Rated Flow 0.68	Seal Part if Included 22046-110	Supplier Part Number FD14-4002-18-06	Thread 1 M22 x 1.5 6g	Thread Sealant No	Torque Rating 30-60 lb-ft	Torque Rating 30-60 lb-ft	Alternate Part Numbers Alternate Part Number C1FV92, Alternate Part Number MI-06230892, Alternate Part Number MINO-00402X01646	Product Weight 0.29 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the torque spec on this thing, and does it need anything special to seal up right at the port?

Question by: Phil W on Jun 25, 2025, 10:22 AM

Torque range on the male half is 30 to 60 lb-ft. For sealing at the port face, it uses a copper-crush gasket that seats directly against the port, so you're not relying on thread sealant or tape to make that connection. The FKM seal material on this male half side handles the internal sealing. Just get it into that range and the gasket does its job.

Answer by: Customer Support on Jun 26, 2025, 11:31 AM

Similar Products

Model Number	Thread 1	Torque Rating	Rated Flow	A	B
FD14-4002-02-06	M18 x 1.5 6g	20-40 lb-ft	0.24	1.52	0.96
FD14-4002-14-06	1-1/8-12 UNF-2A	30-60 lb-ft	0.68	1.54	0.96
FD14-4002-17-06	M25 x 1.5 6g	30-60 lb-ft	0.68	1.54	0.96
FD14-4002-18-06	M22 x 1.5 6g	30-60 lb-ft	0.68	1.54	0.96
