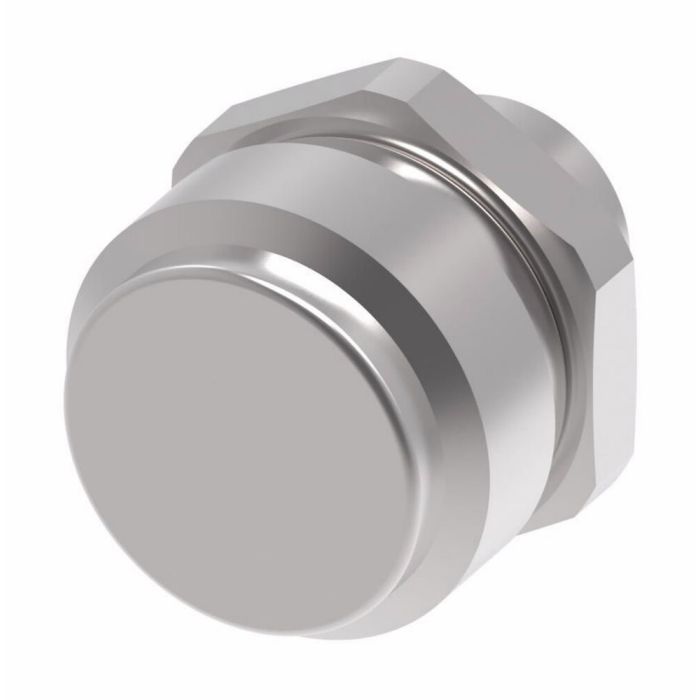

FD14 Series Oil Drain Coupling, Male Half, M25 x 1.5 6g Thread

A 1.54	B 0.96	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Type 1 Metric	Rated Flow 0.68	Rated Flow 0.68	Seal Part if Included 22046-110	Supplier Part Number FD14-4002-17-06	Thread 1 M25 x 1.5 6g	Thread Sealant No	Torque Rating 30-60 lb-ft	Torque Rating 30-60 lb-ft	Alternate Part Numbers Alternate Part Number C1EK98	Product Weight 0.31 lbs

Product Questions & Answers

Is that M25 thread the only size this drain coupling comes in?

Question by: Hubert T on May 16, 2025, 9:08 PM

This Aeroquip FD14 series oil drain coupling features a M25 x 1.5 6g thread, suited to a broad range of equipment port configurations.

Answer by: Customer Support on May 18, 2025, 10:30 AM

Model Number	Thread 1	Torque Rating	Rated Flow	A	B
FD14-4002-02-06	M18 x 1.5 6g	20-40 lb-ft	0.24	1.52	0.96
FD14-4002-14-06	1-1/8-12 UNF-2A	30-60 lb-ft	0.68	1.54	0.96
FD14-4002-17-06	M25 x 1.5 6g	30-60 lb-ft	0.68	1.54	0.96
FD14-4002-18-06	M22 x 1.5 6g	30-60 lb-ft	0.68	1.54	0.96
